Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 826567-B21
Manufacturer Website Address : WWW.HPE.COM

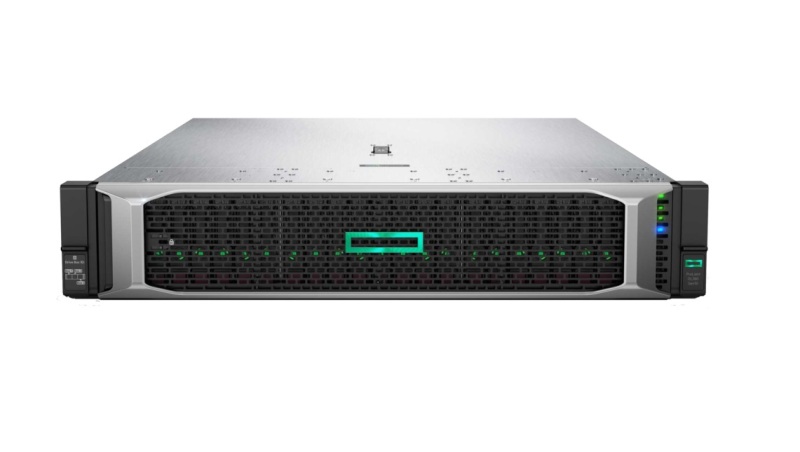

Product Name: Proliant Dl380 Gen10 - 2u Rack Mountable Server ( High Performance Model)

Processor & Chipset :
Cpu : Intel Xeon Gold 6130 / 2.1 Ghz
Max Turbo Speed : 3.7 Ghz
Number Of Cores : 16-core
Cpu Qty : 2
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Socket P
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 44 Mb
Cache Per Processor : 22 Mb

Memory :
Installed Size : 64 Gb / 768 Gb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2666 Mhz
Rated Memory Speed : 2666 Mhz
Memory Specification Compliance : Pc4-20800
Form Factor : Dimm 288-pin
Features : Registered, Dual Rank, Hp Smartmemory, 6-channel Memory Architecture
Configuration Features : 2 X 32 Gb
Ram Supported : Pc4-20800 - 768 Gb Registered ¦ Pc4-20800 - 1.5 Tb Load-reduced

Storage:
Hard Drive : None
Optical Drive : None

Card Reader:
Type : Card Reader
Supported Flash Memory Cards : Microsd

Storage Controllers:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Storage Controller (2nd):
Type : 1 X Sata
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software
Channel Qty : 14

Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Interface (bus) Type : Flexiblelom
Ethernet Ports : 4 X Gigabit Ethernet, 2 X 25 Gigabit Ethernet
Ethernet Controller : Hp 640flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion/ Connectivity :
Expansion Bays Total (free) :
1 (total) / 0 (free) X External Universal Media Bay
10 (total) / 10 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :
2 (total) / 0 (free) X Cpu
24 (total) / 22 (free) X Dimm 288-pin
1 (total) / 1 (free) X Flexiblelom
1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height
2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces & Ports :
1 X Hp Ilo - Type A (1 In Front)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Hp Ilo - Rj-45 (1 Rear)
4 X Lan (gigabit Ethernet) - Rj-45 (4 Rear)
1 X Vga (1 Rear) ¦ 2 X Lan (25gigabit Ethernet) (sfp28) (2 Rear)
2 X Usb 2.0 (2 In Front)
1 X Displayport (1 In Front)

Miscellaneous :
Included Accessories :
6 X Standard Hot Plug Fans
High-performance Heatsink

Cables Included :
Power Cable

Compliant Standards :
Aes, Fips 140-2, Ipv6 Ready, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug / Redundant
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%

Dimensions & Weight :
Width : 17.5 In
Depth : 26.7 In
Height : 3.4 In
Weight : 32.85 Lbs

Availability : In Stock
Condition : New Cto
Manufacturer Warranty : Standard
Our Warranty : 30 Days
