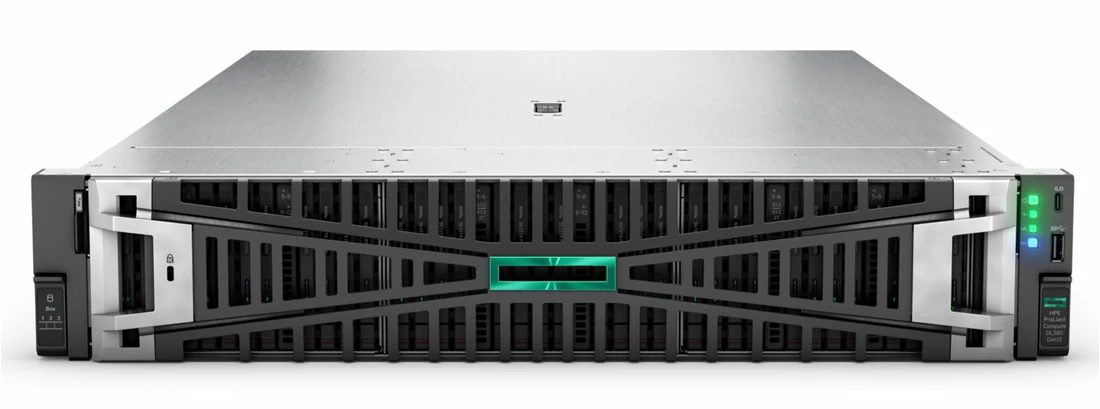

HPE P90004-005 DL380 Gen12 6515P 1P 4x32GB-R 8SFF MR408i-o 2x960GB SSD 2x1000W PS NA Server
BRAND: HPE | More SERVERS from HPE
$19,995.00
Capacity: 16-CORE XEON 2.3GHz
Quantity :
HPE P90004-005 Proliant Compute Dl380 Gen12 Smart Choice Model (8sff) - 1x Intel Xeon-6 16-core 6515p / 2.3 Ghz, 128(4x32)gb Ddr5 Rdimm, Broadcom Bcm5719 Eth 1gb 4-port Base-t Ocp3 Adapter, HPE Mr408i-o Gen11 X8 Lanes 4gb Cache Ocp Spdm Storage Controller, 2x HPE 960gb Sata 6g Read Intensive Sff Bc Multi Vendor Ssd, 2x HPE 1000w Flex Slot Titanium Hot Plug Power Supply Kit, 2-way 2u Rack Server.
General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P90004-005
Product Form Factor : Rack-mountable - 2u
Height ( Rack Units) : 2u
Server Scalability : 2-way
Hot-swap Bays Qty : 8
Model Name : HPE Proliant Compute Dl380 Gen12 6515p 1p 4x32gb-r 8sff Mr408i-o 2x960gb Ssd 2x1000w Ps Na Server ( Smart Choice Model)
Processor / Chipset :
Cpu : Intel Xeon-6 6515p
Processor Base Frequency : 2.3 Ghz
Max Turbo Speed : 3.8 Ghz
All Core Turbo Frequency : 3.8 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 1
Cpu Upgradability : Upgradable
Intel Upi Speed : 24 Gt/s
Tdp : 150 W
Memory Types : Ddr5(6400mt/s)
Max Memory Size (dependent On Memory Type) : 4 Tb
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology
Cpu Socket : Fclga4710
Cache Memory :
Installed Size : L3 Cache - 72 Mb
Cache Per Processor : 72 Mb
Ram :
Installed Size : 128 Gb / 8tb Max (4tb Per Processor)
Technology : Ddr5 Rdimm
Effective Memory Speed : 6400 Mt/s
Rated Memory Speed : 6400 Mt/s
Form Factor : Dimm 288-pin
Slots : 32 (total) / 28 (empty)
Features : Registered, HPE Ddr5 Smart Memory
Configuration Features : 4 X 32 Gb
Accelerators :
Accelerators : None
Networking :
Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5719
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 6
Features : Wake On Lan (wol), Pxe Support
Storage Controller :
Type : 1 X Raid - Ocp
Controller Interface Type : Serial Ata-600 / Sas 3.0 / Pci Express (nvme)
Storage Controller Name : HPE Mr408i-o Gen11 X8 Lanes 4gb Cache Ocp Spdm Storage Controller
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 4 Gb
Internal Storage Devices :
Hdd / Ssd :
Hard Drive / Type : Ssd-bc
Hard Drive / Size : 2.5
Hard Drive / Interface Type : Sata 6 Gb/s
Hard Drive / Bays Qty : 8
Ssd Capacity : 960gb
Ssd / Installed Qty : 2
Total Installed : 1920 Gb
Max Storage Capacity : 230.4 Tb (24 + 6 X 7.68 Tb)
Optical Drive : No Optical Drive
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Video Modes Up To 1920 X 1200 - 60 Hz (32 Bpp)
Power :
Device Type : Power Supply - Hot-plug - Flex Slot
Power Redundancy : Optional
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 1000 Watt
80 Plus Certification : 80 Plus Titanium
Efficiency : 96%
Expansion / Connectivity :
Bays :
Slots :
Interfaces :
Security Hardware :
Tpm (trusted Platform Module)
1x HPE Bezel Lock Kit
1x HPE Proliant Dl3xx Gen11 Intrusion Cable Kit
1x HPE Gen11 2u Bezel Kit
Miscellaneous :
Included Accessories : 4x Standard Fans, HPE Proliant Dl3xx Gen11 Easy Install Rail 3 Kit
Compliant Standards : Acpi 6.5 Compliant, Pcie 5.0 Compliant, Wake On Lan (wol) Support, Microsoft Logo Certifications, Pxe Support, Vga, Displayport, Usb 3.2 Gen1 Compliant, Usb 2.0 Compliant (via Universal Media Bay), Energy Star, Smbios 3.7, Unified Extensible Firmware Interface (uefi) 2.10, Uefi Class 3, Redfish Api, Ipmi 2.0, Advanced Encryption Standard (aes), Snmp V3, Tls 1.2, Dmtf Redfish Support For Secure Boot Key Management, Acpi Dsm Drive Led Management, Memory Page Retire Support, Retire Old Vmware Secure Boot Key, Apml, Active Directory V1.0, Ashrae A3/a4
Operating System / Software :
Os Provided : No Operating System
Os Certified : Microsoft, Vmware, Red Hat, Suse, Canonical Ubuntu, Oracle Linux, Xenserver, Community Enterprise Linux (centos, Alma Linux, Rocky Linux, Openeuler), Sap Linux, Wind River Linux, Clearos, Oracle Solaris
Software : HPE Ilo Standard With Intelligent Provisioning, HPE Oneview Standard (free Download)
Sustainability Information :
Energy Star Certified : Yes
Energy Star Version : 4.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% Rh (non-condensing)
Dimensions & Weight :
Width : 17.64 In
Depth : 28.62 In
Height : 3.44 In
Weight : 39.68 Lbs
Condition : New Cto Build
Availability : In Stock
Our Warranty : 90 Days
