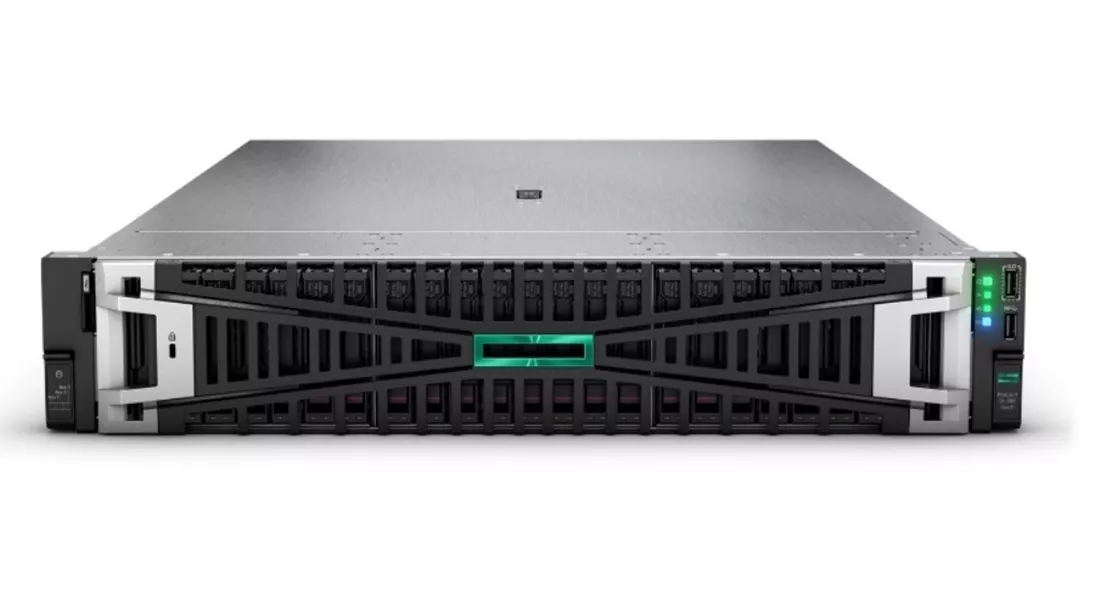

HPE P71681-005 DL380 Gen11 6526Y 1p 128GB-R NS204i-u NC BCM5719 8SFF 2x1000W RPS NA Server
BRAND: HPE | More SERVERS from HPE
$13,500.00
Capacity: 16-CORE XEON GOLD 2.8GHz
Quantity :
Product Overview
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots :
2 (total) / 2 (free) X Flexiblelom
1 (total) / 1 (free) X Pcie 5.0 X16 - Full-length, Full-height
1 (total) / 1 (free) X Pcie 5.0 X16 - Full-length, Full-height (x8 Mode)
1 (total) / 1 (free) X Pcie 5.0 X16 - Half-length, Full-height (x8 Mode)
Interfaces :
1 X Usb 3.0 (1 In Front) (HPE Ilo Service Port)
4 X Usb 3.0 (1 Front, 2 Rear, 1 Internal)
1 X HPE Ilo - Rj-45 (1 Rear)
1 X Vga (1 Rear)
4 X Lan (gigabit Ethernet) - Rj-45
Miscellaneous :
Included Accessories : Cable Management Arm, HPE High Performance Heatsink, 6x High Performance Fan, Sff Easy Install Rail Kit
Compliant Standards : Aes, Fips 140-2, Tls V1.2, Low Halogen, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.3, Erp Lot 9
Pricing Type : Bto
Power :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 1000 Watt
80 Plus Certification : 80 Plus Titanium
Operating System / Software :
Os Provided : No Operating System
Os Certified : Microsoft Windows Server, Red Hat Enterprise Linux, Vmware Esxi, Oracle Linux, Canonical Ubuntu, Citrix
Software : HPE Server Uefi
Sustainability Information :
Energy Star Certified: yes
Energy Star Version: 3.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% Rh (non-condensing)
Dimensions & Weight :
Width : 17.6 In
Depth : 28.6 In
Height : 3.4 In
Weight : 35.27 Lbs
Condition : New Cto Build
Availability : In Stock
Our Warranty : 90 Days
HPE P71681-005 Proliant Dl380 Gen11 Smart Choice Model - 5th Gen 1x Intel Xeon 16-core Gold 6526y / 2.8 Ghz - 128(4x32)gb Ddr4 Sdram - Broadcom Bcm5719 Eth 1gb 4p Base-t Ocp3 Adapter - HPE Ns204i-u Gen11 Nvme Hot Plug Boot Optimized Storage Device - 8sff - 2x 1000w Flex Slot Titanium Hot Plug Power Supply - 2-way 2u Rack Server.
General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P71681-005
Type : Server - Rack-mountable
Height ( Rack Units) : 2u
Server Scalability : 2-way
Hot-swap Bays Qty : 8
Product Name : HPE Proliant Dl380 Gen11 6526y 16-core 1p 128gb-r Ns204i-u Nc Bcm5719 8sff 2x1000w Rps Na Server (smart Choice Model)
Processor / Chipset :
Cpu : Intel Xeon Gold 6526y
Clock Speed : 2.8 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Socket : Intel Socket 4677
Chipset Type : Intel C741
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology
Cache Memory :
Installed Size : Smart Cache - 37.5 Mb
Cache Per Processor : 37.5 Mb
Ram :
Installed Size : 64 Gb / 8.0 Tb (max)
Technology : Ddr5 Sdram
Effective Memory Speed : 5600 Mhz
Rated Memory Speed : 5600 Mhz
Form Factor : Dimm 288-pin
Slots : 32 (total) / 28 (empty)
Features : Registered, Slots 17 - 32 Are Available In Two-processor Configuration Only, HPE Smartmemory
Configuration Features : 4 X 32 Gb
Ram Supported : 8.0 Tb Load-reduced - Ecc - 1.5 Tb Registered - Ecc - 192 Gb Non-volatile - Ecc
Internal Storage Devices :
Hdd / Ssd :
Hard Drive / Size : 2.5
Hard Drive / Bays Qty : 8
Hot Pluggable : Yes
Optical Drive : No Optical Drive
Storage Controller :
Storage Controller Name : HPE Ns204i-u Gen11 Nvme Hot Plug Boot Optimized Storage Device
Raid Levels : Dedicated Hardware Raid 1
Form Factor : Pcie Half-height, Half-length (hhhl) Card
Usable Capacity : 480gb
Compliance : Rohs, Lot 9
Pcie Support : Gen3
Card Reader :
Type : Card Reader
Supported Flash Memory Cards : Microsd
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga
Networking :
Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5719
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 6
Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity :
Bays :
Slots :
Interfaces :
Miscellaneous :
Included Accessories : Cable Management Arm, HPE High Performance Heatsink, 6x High Performance Fan, Sff Easy Install Rail Kit
Compliant Standards : Aes, Fips 140-2, Tls V1.2, Low Halogen, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.3, Erp Lot 9
Pricing Type : Bto
Power :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 1000 Watt
80 Plus Certification : 80 Plus Titanium
Operating System / Software :
Os Provided : No Operating System
Os Certified : Microsoft Windows Server, Red Hat Enterprise Linux, Vmware Esxi, Oracle Linux, Canonical Ubuntu, Citrix
Software : HPE Server Uefi
Sustainability Information :
Energy Star Certified: yes
Energy Star Version: 3.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% Rh (non-condensing)
Dimensions & Weight :
Width : 17.6 In
Depth : 28.6 In
Height : 3.4 In
Weight : 35.27 Lbs
Condition : New Cto Build
Availability : In Stock
Our Warranty : 90 Days
