Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P39380-b21
Manufacturer Website Address : Www.hpe.com
Server Scalability : 2-way
Height (rack Units) : 2u

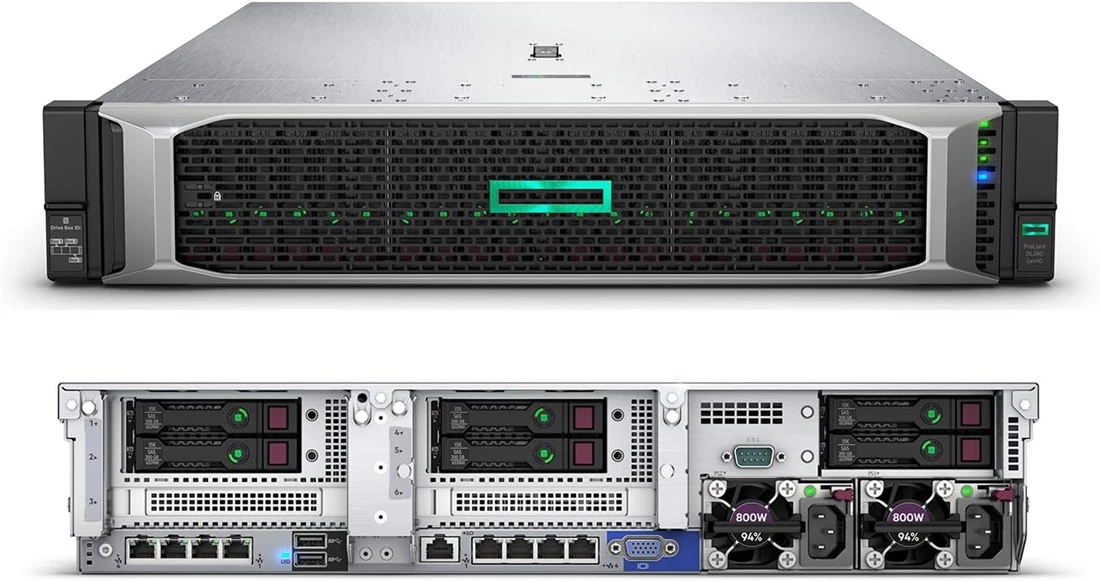

Product Name : Proliant Dl380 Gen10 - Rack Mountable Server ( Smb Networking Choice Model)

Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Gold 5220 / 2.2 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 18-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 24.75 Mb
Cache Per Processor : 24.75 Mb

Ram :
Installed Size : 32 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram - Advanced Ecc
Effective Memory Speed : 2666 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Dual Rank, Slots 13 - 24 Are Available In Two-processor Configuration Only, Hpe Smartmemory
Configuration Features : 1 X 32 Gb
Ram Supported : 3 Tb Load-reduced - Ecc 1.5 Tb Registered - Ecc 192 Gb Non-volatile - Ecc

Hard Drive :
Type : No Hdd

Storage Controllers :
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : Hpe Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Optical Storage :
Type: No Optical Drive

Card Reader :
Type : Card Reader
Supported Flash Memory Cards : Microsd

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication :
Ethernet Ports : 2 X 10/25 Gigabit Ethernet Sfp28
Ethernet Controller : Broadcom Bcm57414
Data Link Protocol : 10 Gigabit Ethernet, 25 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Expansion Bays Total (free) :
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie 3.0 X8 - Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X16 - Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 - Half-length, Full-height
1 (total) / 0 (free) X Flexiblelom

Interfaces & Ports :
3 X Usb 3.0 (1 Front, 2 Rear)
1 X Vga
2 X Lan (10gigabit Ethernet)
1 X Hpe Ilo
1 X Hpe Ilo (service Port)

Miscellaneous :
Included Accessories : Cable Management Arm, 4 Standard Fans, Sff Easy Install Rails
Compliant Standards : Weee, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Operating System / Software :
Os Provided : No Operating System

Environmental Standards :
Energy Star Certified : Yes
Energy Star Version : 3.0

Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% (non-condensing)

Dimensions & Weight :
Width : 17.5 In
Depth : 26.7 In
Heigh : 3.4 In
Weight : 32.54 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
