P36135-B21

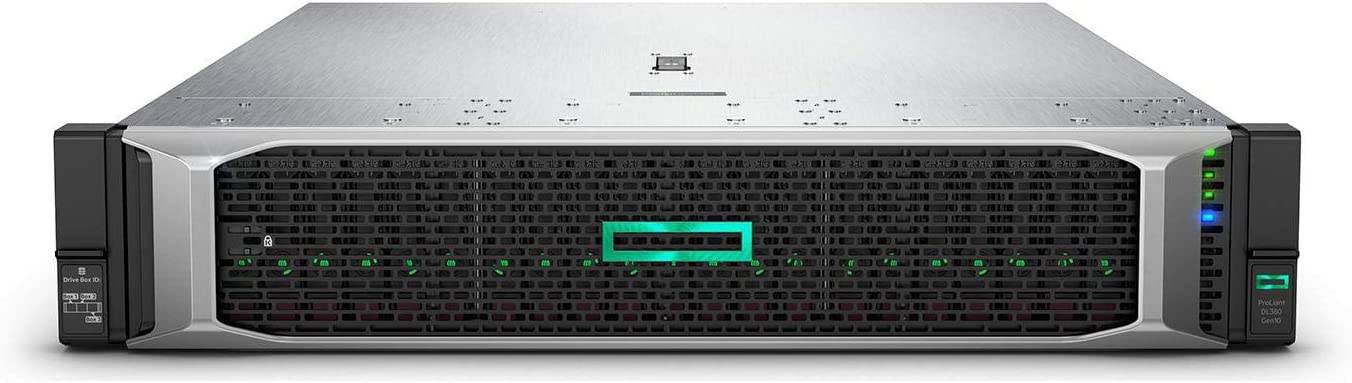

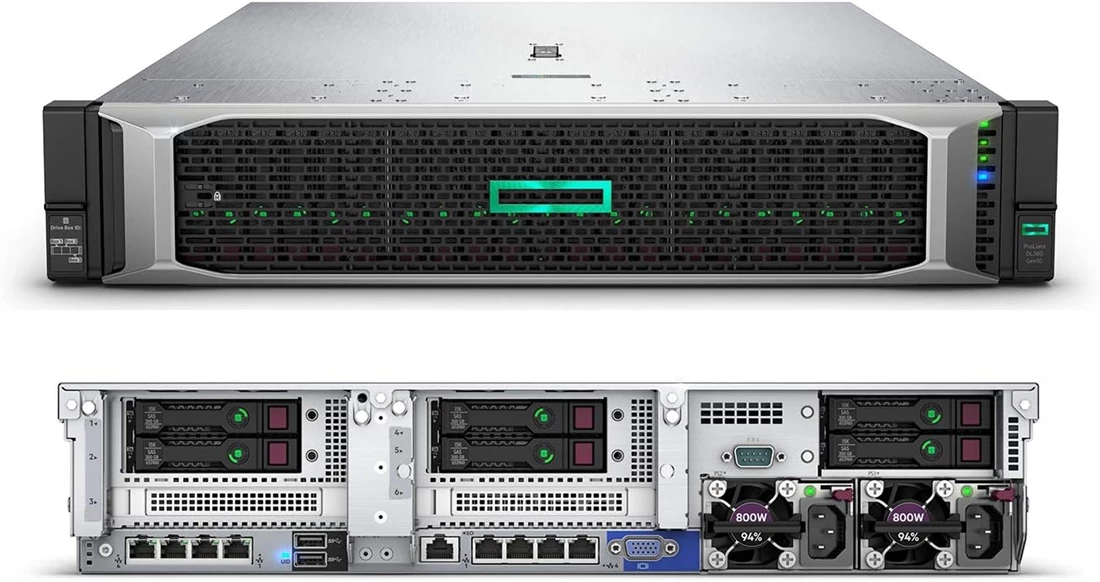

HPE P36135-B21 Dl380 Gen10 5218R 1P 32G Nc 8Sff Svr

Part Number: P36135-B21
BRAND: HPE | More SERVERS from HPE
$4,050.00
Capacity: 20-CORE XEON 2.1GHz

Quantity :
Upto 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P36135-B21
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 2-way
Height (rack Units) : 2u
Product Name : Proliant Dl380 Gen10 - Rack Mountable Server ( Smb Networking Choice Model)

Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Gold 5218r / 2.1 Ghz
Max Turbo Speed : 4 Ghz
Number Of Cores : 20-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 27.5 Mb
Cache Per Processor : 27.5 Mb

Ram :
Installed Size : 32 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram - Advanced Ecc
Effective Memory Speed : 2666 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Dual Rank, Slots 13 - 24 Are Available In Two-processor Configuration Only, HPE Smartmemory
Configuration Features : 1 X 32 Gb
Ram Supported : 3 Tb Load-reduced - Ecc 1.5 Tb Registered - Ecc 192 Gb Non-volatile - Ecc 6 Tb - HPE Persistent Memory - Optane Dc Persistent

Hard Drive :
Type : No Hdd

Storage Controllers :
Type : 1 X Sata - Pcie 3.0 X4
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software Raid
Channel Qty : 14
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10

Optical Storage :
Type: No Optical Drive

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication :
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Broadcom Bcm57416
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Expansion Bays Total (free) :
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie 3.0 X8 - Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X16 - Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 - Half-length, Full-height
1 (total) / 0 (free) X Flexiblelom

Interfaces & Ports :
3 X Usb 3.0 (1 Front, 2 Rear)
1 X Vga
2 X Lan (10gigabit Ethernet)
1 X HPE Ilo
1 X HPE Ilo (service Port)

Miscellaneous :
Included Accessories :
Cable Management Arm
4 Standard Fans
Sff Easy Install Rails

Compliant Standards :
Weee, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt

Operating System / Software :
Software :
HPE Ilo Standard With Intelligent Provisioning
HPE Oneview Standard (free Download)

Environmental Standards :
Energy Star Certified : Yes
Energy Star Version : 3.0

Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% (non-condensing)

Dimensions & Weight :
Width : 17.5 In
Depth : 28.8 In
Heigh : 3.4 In
Weight : 32.54 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Standard
Our Warranty : 30 Days
