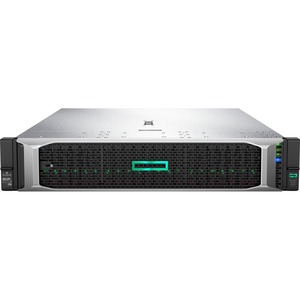

HPE P24850-B21 DL380 Gen10 6250 1P 32GB 2U Rack Server

general:
type: Server
product Form Factor: Rack-mountable - 2u
built-in Devices: Led Panel
server Scalability: 2-way
hot-swap Bays Qty: 8
localization Region: Worldwide

processor / Chipset:
cpu: Intel Xeon Gold 6250 / 3.9ghz
max Turbo Speed: 4.5ghz
number Of Cores: 8-core
cpu Qty: 1
max Cpu Qty: 2
cpu Upgradability: Upgradable
processor Main Features: Hyper-threading Technology, Intel Turbo Boost Technology 2
cpu Socket: Fclga3647 Socket
chipset Type: Intel C621

cache Memory:
installed Size: L3 Cache - 35.75 Mb
cache Per Processor: 35.75 Mb

ram:
installed Size: 32gb / 1.5tb (max)
technology: Ddr4 Sdram - Advanced Ecc
effective Memory Speed: 2933 Mhz
rated Memory Speed: 2933 Mhz
form Factor: Dimm 288-pin
slots: 24 (total) / 23 (empty)
features: Registered, Dual Rank, Slots 13 - 24 Are Available In Two-processor Configuration Only, HPE Smartmemory
configuration Features: 1 X 32 Gb
ram Supported: 3 Tb Load-reduced - Ecc, 1.5 Tb Registered - Ecc, 192 Gb Non-volatile - Ecc, 6 Tb - HPE Persistent Memory - Optane Dc Persistent

hard Drive:
type: No Hdd

storage Controller:
type: 1 X Sata
controller Interface Type: Sata 6gb/s
storage Controller Name: HPE Smart Array S100i Sr Software
channel Qty: 14

optical Storage:
type: No Optical Drive

card Reader:
type: Card Reader

supported Flash Memory Cards:
microsd

monitor:
monitor Type: None

graphics Controller:
video Memory: 16 Mb
video Interfaces: Vga

networking:
ethernet Ports: 4 X Gigabit Ethernet
ethernet Controller: HPE 331i
data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Controller: Integrated Lights-out 5
features: Wake On Lan (wol), Acpi Support, Pxe Support

expansion / Connectivity:
bays: 8 (total) / 8 (free) X Hot-swap 2.5 Sff
slots: 1 (total) / 1 (free) X Microsd Card (internal) ¦ 1 (total) / 1 (free) X Pcie 3.0 X8 - Full-length, Full-height ¦ 1 (total) / 1 (free) X Pcie 3.0 X16 - Full-length, Full-height ¦ 1 (total) / 1 (free) X Pcie 3.0 X8 - Half-length, Full-height ¦ 1 (total) / 0 (free) X Flexiblelom
interfaces: 1 X HPE Ilo - Type A (1 In Front) ¦ 5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal) ¦ 1 X HPE Ilo - Rj-45 (1 Rear) ¦ 4 X Lan (gigabit Ethernet) - Rj-45 (4 Rear) ¦ 1 X Vga (1 Rear)

miscellaneous:
compliant Standards: Aes, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

power:
device Type: Power Supply - Hot-plug
power Redundancy: Optional
power Redundancy Scheme: 1+1 (with Optional Power Supply)
installed Qty: 1
max Supported Qty: 2
nominal Voltage: Ac 120/230 V (50/60 Hz)
power Provided: 800 Watt

dimensions & Weight:
width: 17.5 In
depth: 26.7 In
height: 3.4 In
weight: 32.85 Lbs

availability: In Stock
condition: New Cto
manufacturer Warranty: Standard
