Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P56960-B21
Manufacturer Website Address : WWW.HPE.COM
Product Form Factor : Rack-mountable - 2u
Height ( Rack Units) : 2u
Hot-swap Bays Qty : 8

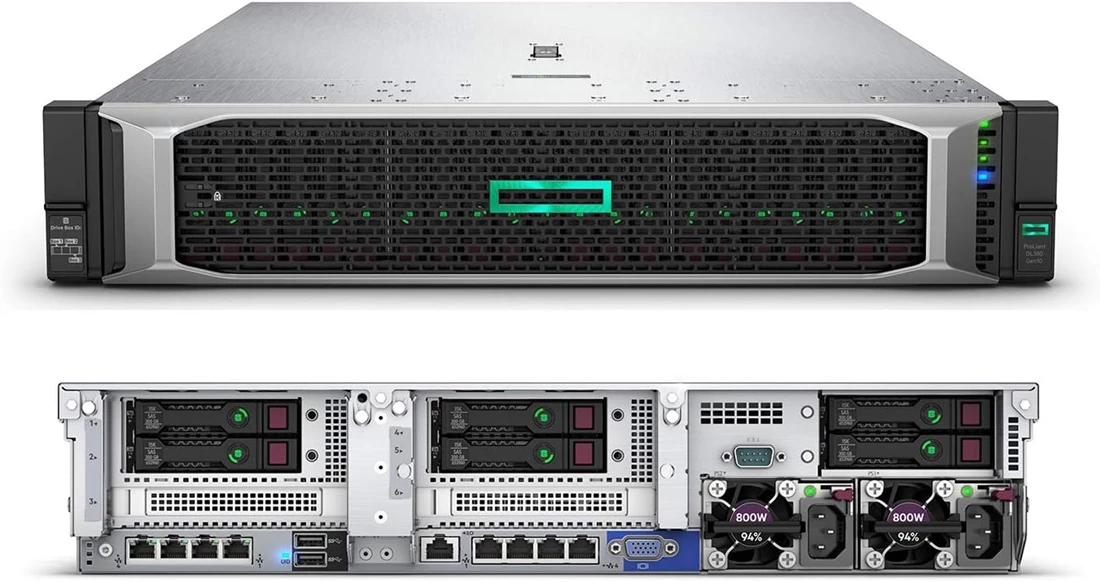

Product Name : Dl380 Gen10 5218 1p 32g 8sff Server ( Pre-configured Model)

Processor & Chipset :
Cpu : Intel Xeon Silver 4215r
Clock Speed : 3.2 Ghz
Max Turbo Speed : 4 Ghz
Number Of Cores : 8-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 11 Mb
Cache Per Processor : 11 Mb

Memory :
Installed Size : 32 Gb / 1.54 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2400 Mhz
Rated Memory Speed : 2933 Mhz
Memory Specification Compliance : Pc4-23466
Form Factor : Dimm 288-pin
Slots : 12 (total) / 11 (empty)
Features : Registered, Online Spare Memory, Dual Rank, Mixing Of Different Types Of Memory Modules Is Not Supported, Slots 13 - 24 Are Available In Two-processor Configuration Only, 6-channel Memory Architecture
Configuration Features : 1 X 32 Gb
Ram Supported : 3 Tb Load-reduced , 1.54 Tb Registered , 192 Gb Non-volatile , 6 Tb - HPE Persistent Memory - Optane Dc Persisten

Storage & Storage Controller :
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s / Pcie 4.0 (nvme)
Storage Controller Name : HPE Smart Array Mr416i-p
Channel Qty : 16
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 4 Gb

Optical Storage :
Type : No Optical Drive

Card Reader :
Type : Card Reader
Supported Flash Memory Cards : Microsd

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication :
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Broadcom Bcm57414
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
1 (total) / 1 (free) X Pcie 3.0 X8 - Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X16 - Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 - Half-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 0 (free) X Flexiblelom

Interfaces :
1 X Vga
2 X Lan (10gigabit Ethernet) (sfp+)
1 X HPE Ilo - Rj-45
3 X Usb 3.0 (1 Front, 2 Rear)

Miscellaneous :
Included Accessories : Cable Management Arm, 4 Standard Fans, Sff Easy Install Rails, HPE Smart Storage Battery
Compliant Standards : Aes, Triple Des, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1, Redfish Api, Uefi, Smbios 3.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.5 In
Depth : 28.8 In
Height : 3.4 In
Weight : 32.54 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
