Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P20182-B21
Manufacturer Website Address : WWW.HPE.COM

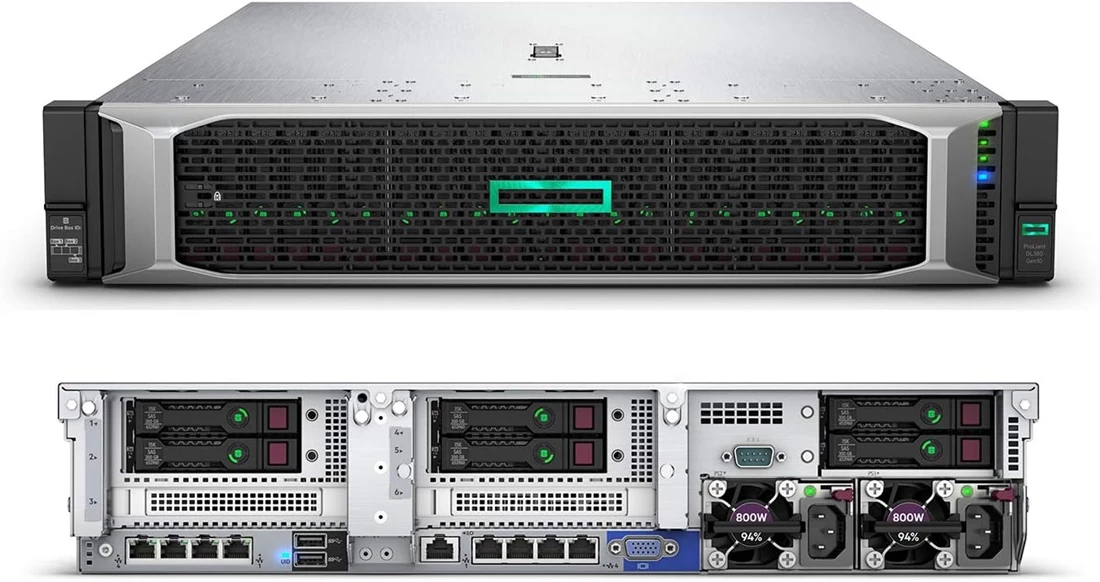

Product Name : Proliant Dl380 Gen10 - 2u Rack Mountable Server ( Bot Nc Model)

Processor & Chipset :
Cpu : Intel Xeon Bronze 3204 / 1.9 Ghz
Number Of Cores : 6-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 8.25 Mb
Cache Per Processor : 8.25 Mb

Memory :
Installed Size : 16 Gb
Technology : Ddr4 Sdram
Effective Memory Speed : 2133 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Dual Rank, Slots 13 - 24 Are Available In Two-processor Configuration Only, HPE Smartmemory, 6-channel Memory Architecture
Configuration Features : 1 X 16 Gb
Ram Supported : 1 Tb Registered 2 Tb Load-reduced

Storage Controllers:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i
Channel Qty : 14
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : HPE 366flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp
Remote Management Controller : Integrated Lights-out 5
Features : Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1as, Ieee 802.3az

Expansion / Connectivity :
Bays :
8 (total) / 8 (free) X Hot-swap 3.5 Lff

Slots :
1 (total) / 1 (free) X Flexiblelom
1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height
2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces :
4 X Lan (gigabit Ethernet) - Rj-45
1 X Hp Ilo - Rj-45 (1 Rear)
1 X Vga (1 Rear)
8 X Sata-600 / Sas 3.0
1 X Hp Ilo - Type A (1 In Front)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)

Miscellaneous :
Included Accessories :
Cable Management Arm
6 Performance Fans

Compliant Standards :
Aes, Fips 140-2, Ipv6 Ready, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 500 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.5 In
Depth : 26.7 In
Height : 3.4 In
Weight : 32.54 Lbs

Condition : Refurbished
Availability : In Stock
Our Warranty : 30 Days
