Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P20172-b21
Manufacturer Website Address : Www.hpe.com

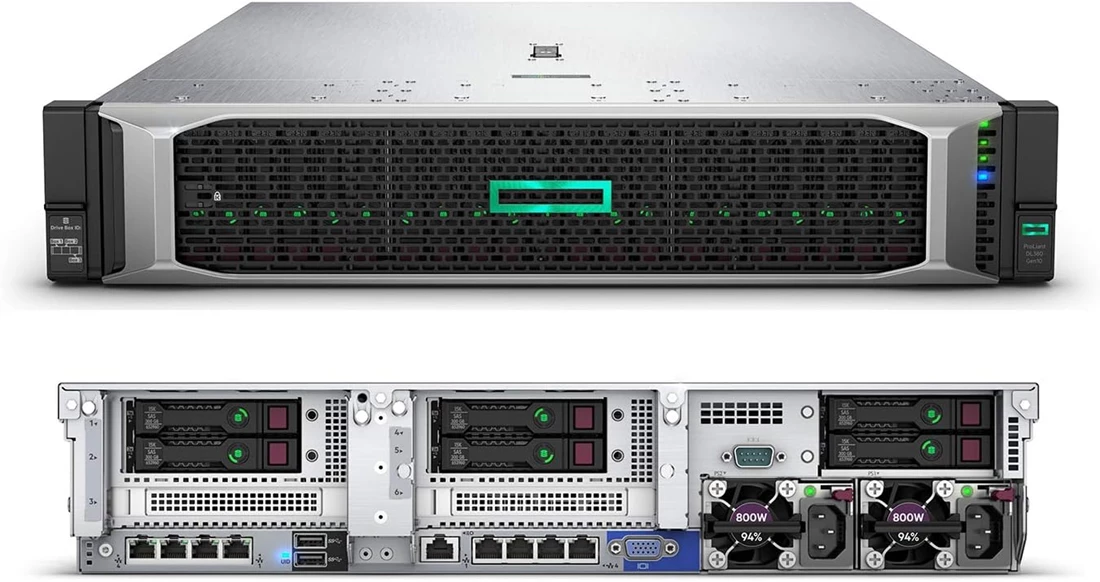

Product Name : Proliant Dl380 Gen10 - 2u Rack Mountable Server ( Bot Nc Model)

Processor & Chipset :
Cpu : Intel Xeon Silver 4208 / 2.1 Ghz
Max Turbo Speed : 3.2 Ghz
Number Of Cores : 8-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 11 Mb
Cache Per Processor : 11 Mb

Memory :
Installed Size : 32 Gb
Technology : Ddr4 Sdram
Effective Memory Speed : 2400 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Dual Rank, Slots 13 - 24 Are Available In Two-processor Configuration Only, Hpe Smartmemory, 6-channel Memory Architecture
Configuration Features : 1 X 32 Gb
Ram Supported : 1 Tb Registered 2 Tb Load-reduced

Storage Controllers:
Type : 1 X Raid - Pcie 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : Hpe Smart Array P816i-a
Channel Qty : 16
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 4 Gb

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication :
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Intel I350-t4v2
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 5

Expansion / Connectivity :
Bays :
12 (total) / 12 (free) X Hot-swap 3.5 Lff

Slots :
1 (total) / 1 (free) X Flexiblelom
1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height
2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces :
4 X Lan (gigabit Ethernet) - Rj-45
1 X Hp Ilo - Rj-45 (1 Rear)
1 X Vga (1 Rear)
8 X Sata-600 / Sas 3.0
1 X Hp Ilo - Type A (1 In Front)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)

Miscellaneous :
Included Accessories :
Cable Management Arm
6 Performance Fans

Compliant Standards :
Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.5 In
Depth : 26.7 In
Height : 3.4 In
Weight : 32.54 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
