| Product Overview
General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P05172-B21
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 2-way
Height ( Rack Units) : 2u

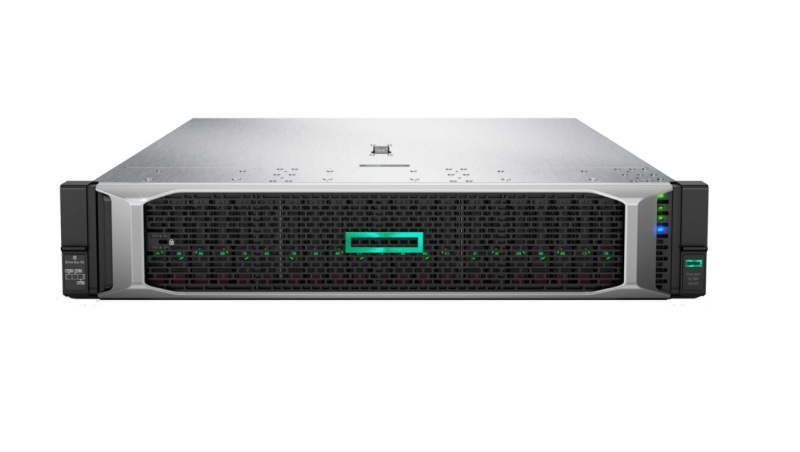

Product Name : HPE Proliant Dl380 Gen10 Plus 8sff Nc Cto Server
Processor & Chipset :
Cpu : None
Installed Quantity : 0
Supported Quantity : 2
Upgradability : Upgradable
Socket : Fclga4189 Socket
Chipset Model : C621a
Cache Memory :
Installed Size : L3 Cache - 0 Mb
Cache Per Processor : 0 Mb
Ram :
Installed Size : 0 Gb / 4 Tb ( Max)
Technology : Ddr4 Sdram - Advanced Ecc
Rated Memory Speed : 3200 Mhz
Form Factor : Dimm 288-pin
Slots : 32 (total) / 32 ( Empty)
Hard Drive :
Type : No Hdd
Storage Controllers :
Type : Embedded Sw Raid With 14 Sata Ports (12-ports Accessible), Choice Of HPE Modular Smart
array And Pcie Plug-in Controller
Optical Storage :
Type: No Optical Drive
Monitor :
Monitor Type : None
Network & Communication :
Type : Choice Of Either Ocp 3.0 Or Select Stand-up Network Adapters For Primary Networking Selection
plus Additional/optional Stand-up Network Adapters
Expansion / Connectivity :
Expansion Bays Total ( Free) :
8 ( Total) / 8 ( Free) X Hot-swap 2.5 Sff
Expansion Slots Total ( Free) :
1 ( Total) / 1 ( Free) X Pcie 4.0 X16 - Full-length, Full-height
1 ( Total) / 1 ( Free) X Pcie 4.0 X16 - Half-length, Full-height (x8 Mode)
1 ( Total) / 1 ( Free) X Pcie 4.0 X16 - Full-length, Full-height (x8 Mode)
Interfaces & Ports :
1 X HPE Ilo - Rj-45
1 X Usb 3.0
1 X HPE Ilo (service Port)
2 X Lan (10gigabit Ethernet) - Sfp+
1 X Vga
Miscellaneous :
Included Accessories : 4 Standard Fans, Cpu Standard Heatsink, HPE Easy Install Rails With Cma
Compliant Standards : Aes, Fips 140-2, Weee, Triple Des, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Redfish Api, Uefi, Acpi 6.3, Smbios 3.2
Environmental Standards :
Energy Star Certified : Yes
Energy Star Version : 3.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% (non-condensing)
Dimensions & Weight :
Width : 17.5 In
Depth : 28 In
Height : 3.4 In
Weight : 35.54 Lbs
Condition : New Cto Build
Availability : In Stock
Our Warranty : 90 Days
