Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 747771-001
Manufacturer Website Address : WWW.HPE.COM

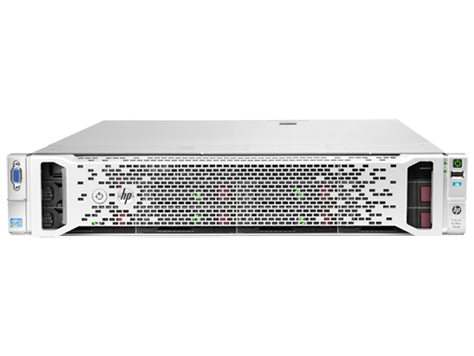

Product Name : Proliant Dl380e G8 2u Rack High Performance Server

Processor & Chipset :
Processor Type : Intel Xeon E5-2450v2/2.5ghz
Number Of Cores : Octa-core (8-core)
64-bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600

Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 40 Mb
Cache Per Processor : 20 Mb

Memory :
Installed Size : 24 Gb
Maximum Size : 384 Gb
Technology : Ddr3 Sdram
Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc3l-12800r
Form Factor : Dimm 240-pin
Configuration Features : 3 X 8 Gb
Ram Supported :
Pc3-12800 - 192 Gb - Registered
Pc3-10600 - 384 Gb - Low Voltage - Load-reduced
Pc3-10600 - 96 Gb - Low Voltage - Unbuffered - Ecc
Pc3-10600 - 192 Gb - Low Voltage - Registered
Pc3-12800 - 96 Gb - Unbuffered - Ecc

Storage & Storage Controller :
Hard Drive : None Ship Standard
Internal Storage : 8 Sff Hdd Bays
Controller Type : 1 X Raid - Plug-in Card - Pci Express 2.0 X4
Controller Interface Type : Sata 3gb/s / Sas 6gb/s
Storage Controller Name : Smart Array P420 With 1gb Fbwc
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 1 Gb

Display & Graphics Controllers :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : Vga

Network & Communication :
Type : Integrated
Interface (bus) Type : Pci Express 2.0 X2
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller(s) : Hp Ethernet 1gb 4-port 366i Adapter
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3az

Expansions & Connectivity :
Expansion Bays Total (free) :

8 (total) / 8 (free) X Hot-swap 2.5in Sff

1 (total) / 1 (free) X External 5.25in Slim Line

Expansion Slots Total (free) :

12 (total) / 9 (free) X Memory - Lrdimm 240-pin

2 (total) / 0 (free) X Processor

1 (total) / 1 (free) X Pcie 3.0 X8 - Full-length, Full-height ( X4 Mode )

1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height ( X8 Mode )

1 (total) / 1 (free) X Pcie 3.0 X8 - Half-length, Full-height

1 (total) / 0 (free) X Pcie 2.0 X8 - Low-profile ( X4 Mode )

1 (total) / 1 (free) X Sd Card

Interfaces & Ports :

2 X Display / Video ( 1 Front, 1 Rear )

4 X Lan (gigabit Ethernet)

1 X Management - Hp Ilo

7 X Usb 2.0 ( 2 Front, 4 Rear, 1 Internal )

1 X Serial

Power Device :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Provided : 460 Watt
80 Plus Certification : 80 Plus Gold

Dimensions & Weight :
Width : 17.5 In
Depth : 27.5 In
Height : 3.4 In
Weight : 30.9 Lbs

Availability: In Stock.
Condition : Refurbished.
Our Warranty : 30 Days.
