Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 741066-B21
Manufacturer Website Address : WWW.HPE.COM

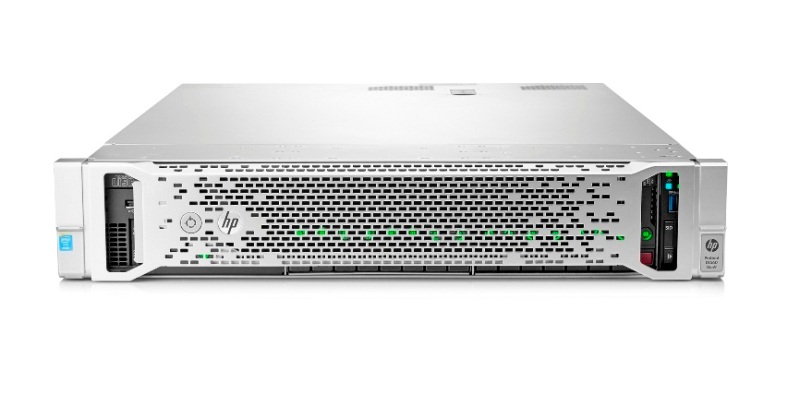

Product Name : HPE Proliant Dl560 Gen9 E5-4640v3 4p 128gb-r P840/4gb 16sff 2x1200w Rps Perf Server ( Base Model)
Product Form Factor : Rack-mountable - 2u
Server Scalability : 4-way

Processor & Chipset :
Cpu : Intel Xeon E5-4640v3 / 1.9 Ghz
Max Turbo Speed : 2.6 Ghz
Number Of Cores : 12-core
Cpu Qty : 4
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Lga2011 Socket

Cache Memory :
Installed Size : L3 Cache - 120 Mb
Cache Per Processor : 30 Mb

Memory :
Installed Size : 128 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram - Advanced Ecc
Effective Memory Speed : 2133 Mhz
Rated Memory Speed : 2133 Mhz
Memory Specification Compliance : Pc4-17000
Form Factor : Dimm 288-pin
Slots : 48 (total) / 40 (empty)
Features : Registered, Memory Mirroring, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features : 8 X 16 Gb
Ram Supported : Pc4-17000 - 1.5 Tb Registered Pc4-17000 - 1.5 Tb Load-reduced

Storage :
Hard Drive : None
Optical Drive : None

Storage Controllers :
Type : 1 X Raid - Pcie 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : Hp Smart Array P840 With 4gb Fbwc
Channel Qty : 16
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 4 Gb

Display & Graphics Controllers :
Graphics Processor : Matrox G200
Video Interfaces : Vga

Network & Communication :
Interface (bus) Type : Pci Express 2.0 X8
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp 533flr-t
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ieee 802.1qbg, Ieee 802.2x

Expansion/ Connectivity :
Expansion Bays Total (free) :
16 (total) / 16 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :
4 (total) / 0 (free) X Cpu
48 (total) / 40 (free) X Dimm 288-pin
1 (total) / 0 (free) X Flexiblelom
2 (total) / 2 (free) X Pcie 3.0 X16 - Half-length, Full-height ( X8 Mode )
1 (total) / 0 (free) X Pcie 3.0 X8 - Half-length, Full-height
2 (total) / 2 (free) X Pcie 3.0 X16 - Half-length, Full-height ( X8 Mode, 2 Processors Must Be Installed )
2 (total) / 2 (free) X Microsd Card
1 (total) / 0 (free) X Pcie 3.0 X8 - Half-length, Full-height ( 2 Processors Must Be Installed )
1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height ( 2 Processors Must Be Installed )

Interfaces & Ports :
1 X Serial
1 X Vga
1 X Hp Ilo
3 X Usb 2.0 ( 2 Rear, 1 Internal )
4 X Usb 3.0 ( 1 Front, 2 Rear, 1 Internal )
2 X Lan (10gigabit Ethernet)

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1200 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.5 In
Depth : 29.5 In
Height : 3.4 In
Weight : 39 Lbs

Availability : In Stock
Condition : Refurbished
Our Warranty : 30 Days
