Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P21271-B21
Manufacturer Website Address : WWW.HPE.COM

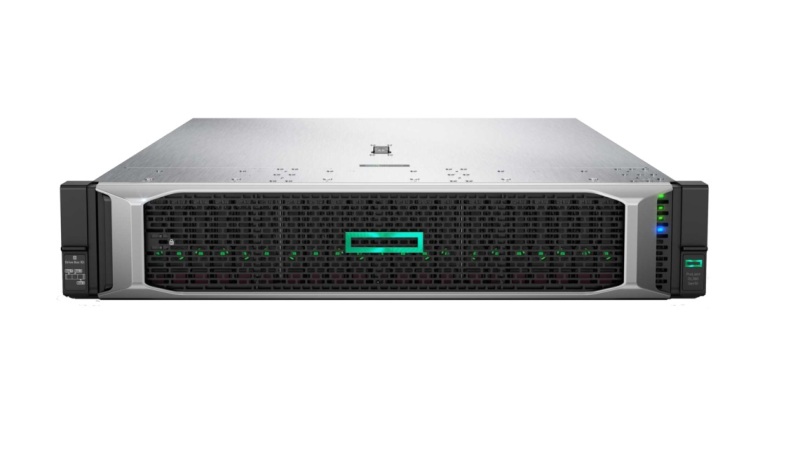

Product Name : Proliant Dl560 Gen10 2u Rack Server (entry Model)

Processor & Chipset :
Cpu : Intel Xeon Gold 5220 / 2.2 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 18-core
Cpu Qty : 2
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 49.5 Mb
Cache Per Processor : 24.75 Mb

Memory :
Installed Size : 64 Gb / 768 Gb (max)
Technology : Ddr4 Sdram
Form Factor : Dimm 288-pin
Slots : 48 (total) / 46 (empty)
Features : Registered, Dual Rank, 6-channel Memory Architecture, Slots 25 - 48 Are Available In Four-processor Configuration Only
Configuration Features : 2 X 32 Gb
Ram Supported : Pc4-20800 - 768 Gb Registered ¦ Pc4-20800 - 1.5 Tb Load-reduced

Storage Controllers :
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication :
ethernet Ports : 4 X Gigabit Ethernet
data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Controller : Integrated Lights-out 5
features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Expansion Bays Total (free) :
1 (total) / 1 (free) X External
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :
1 (total) / 0 (free) X Flexiblelom
2 (total) / 2 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
4 (total) / 4 (free) X Pcie 3.0 X8 - Three-quarter-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces & Ports :
1 X HPE Ilo - Type A (1 In Front)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X HPE Ilo - Rj-45
4 X Lan (gigabit Ethernet)
1 X Vga (1 Rear)
1 X Serial (1 Rear)
2 X Usb 2.0 (2 Rear)

Miscellaneous :
Compliant Standards : Aes, Fips 140-2, Ipv6 Ready, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 1600 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%

Dimensions & Weight :
Width : 17.5 In
Depth : 29.7 In
Height : 3.4 In
Weight : 40.67 Lbs

Condition : HPE Refurbished Cto.
Availability : 3 Or 5 Days Lead Time.
Our Warranty : 30 Days
