Detail overview

General Information:
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number: 487363-001
Manufacturer Website Address : Www.hpe.com

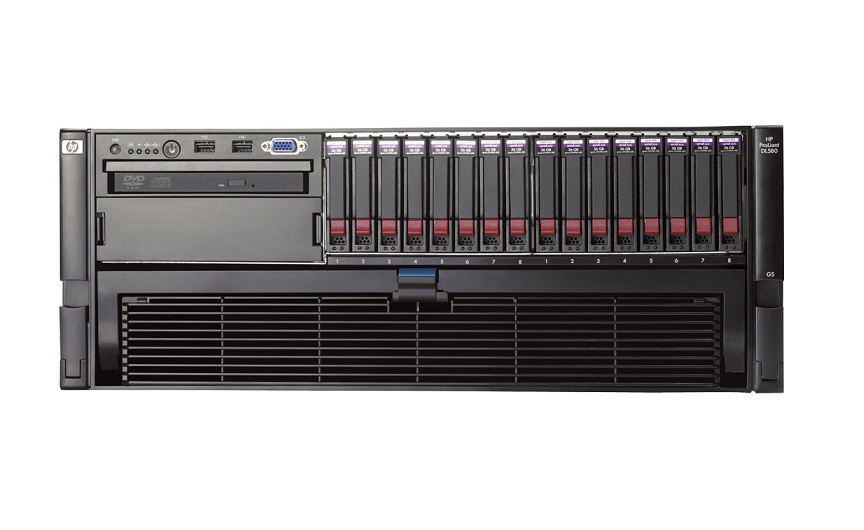

Product Name: Proliant Dl580 G5 - 4-way 4u Rack Server ( Performance Model)

Processor & Chipset :
Processor Type : Intel Xeon E7450 / 2.4 Ghz
Number Of Cores : 6 Core
Cpu Qty : 4
Max Cpu Qty : 4
64-bit Computing : Yes
Chipset Type : Intel 7300
Data Bus Speed : 1066 Mhz

Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 48 Mb
Cache Per Processor : 12 Mb

Memory :
Installed Size : 8 Gb / 128 Gb (max)
Technology : Ddr2 Sdram - Advanced Ecc
Effective Memory Speed : 667 Mhz
Rated Memory Speed : 667 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Fb-dimm 240-pin
Slots : 16 (total)
Features : Memory Mirroring, Fully Buffered, Online Spare Memory

Storage & Optical Storage :
Hard Drive : None

Optical Storage :
Type : Dvd-rom Dvd - Ide
Read Speed : 24x (cd) / 8x (dvd)

Storage Controller :
Type : 1 X Raid - Integrated
Controller Interface Type : Sata 1.5gb/s / Sas
Storage Controller Name : Smart Array P400i
Raid Level : Raid 0, Raid 5, Raid 10
Buffer Size : 512 Mb

Storage Controller (2nd) :
Type : 1 X Ide - Integrated

Display & Graphics Controller :
Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb
Video Interfaces : Vga

Networking :
Type : Plug-in Card
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc373i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansion & Connectivity :
Expansion Bays Total ( Free) :
8 (total) / 8 (free) X Hot-swap 2.5 Sff
1 (total) / 0 (free) X External 5.25 Slim Line
1 (total) / 1 (free) X External 5.25 X 1/2h

Expansion Slots Total ( Free) :
4 (total) / 0 (free) X Cpu
16 Fb-dimm 240-pin
4 (total) / 4 (free) X Pcie X8 - Full-length
1 (total) / 1 (free) X Pcie X4 - Full-length
3 (total) / 3 (free) X Pcie X4 - Half-length

Interfaces :
2 X Usb (2 Front, 2 Rear, 2 Internal)
1 X Serial
1 X Ps/2 Mouse
1 X Ps/2 Keyboard
1 X Vga
1 X Management
2 X Lan (gigabit Ethernet)

Miscellaneous :
Features :
Administrator Password
Power-on Password
Keyboard Password
Disk Configuration Lock
Diskette I/o Control
Serial Port I/o Control

Compliant Standards :
Acpi 2.0, Acpi 1.0a

Power Device :
Power Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Installed Qty : 4
Max Supported Qty : 4
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1200 Watt

Dimention & Weight :
Width : 19 In
Depth : 26.5 In
Height : 6.9 In
Weight : 70.99 Lbs

Availability : In Stock
Condition : Refurbished
Our Warranty : 30 Days
