Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 397296-001
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 4-way
Height (rack Units) : 4u

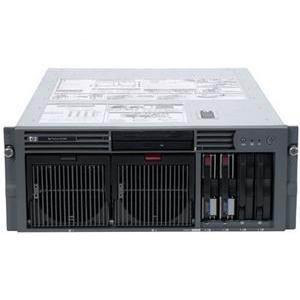

Product Name : Proliant Dl585 Gen1 - Rack Mountable Server ( Single Core Model)

Processor & Chipset :
Cpu : Amd Opteron 854 / 2.8 Ghz
64-bit Computing : Yes
Cpu Qty : 2
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Cpu Socket : Socket 940

Cache Memory :
Installed Size : L2 Cache - 2 Mb
Cache Per Processor : 1 Mb

Ram :
Installed Size : 2 Gb / 64 Gb (max)
Technology : Ddr Sdram - Advanced Ecc
Memory Specification Compliance : Pc2700
Form Factor : Dimm 184-pin
Slots : 16 (total) / 14 (empty)
Upgrade Rule : 2 Modules At A Time

Hard Drive :
Type : No Hdd

Storage Controllers :
Type : 1 X Raid - Integrated - Pci-x
Controller Interface Type : Ultra160 Scsi
Storage Controller Name : Smart Array 5i Plus Controller
Channel Qty : 2
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 64 Mb

Storage Controller (2nd) :
Type : 1 X Ide - Integrated
Controller Interface Type : Ide/ata

Floppy Drive :
Type : 3.5 1.44 Mb Floppy

Optical Storage :
Type : Cd-rom - Ide
Read Speed : 24x

Monitor :
Monitor Type : None

Graphics Controller :
Type : Integrated
Interface Type : Pci
Video Memory : 8 Mb Sdram
Video Interfaces : Vga

Network & Communication :
Interface (bus) Type : Pci-x / 133 Mhz
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansion / Connectivity :
Expansion Bays Total (free) :
1 (total) / 0 (free) X External 5.25 Slim Line
1 (total) / 0 (free) X External 3.5 Slim Line
4 (total) / 4 (free) X Hot-swap 3.5 X 1/3h

Expansion Slots Total (free) :
6 (total) / 6 (free) X Pci-x / 100 Mhz
2 (total) / 2 (free) X Pci-x / 133 Mhz
16 (total) / 14 (free) X Dimm 184-pin
4 (total) / 2 (free) X Cpu

Interfaces & Ports :
1 X Vga
1 X Ps/2 Keyboard
1 X Ps/2 Mouse
2 X Lan (gigabit Ethernet)
1 X Serial
2 X Usb
1 X HPE Ilo

Miscellaneous :
Included Accessories : Rack Mounting Kit
Features : Administrator Password, Power-on Password, Keyboard Password, Disk Configuration Lock, Serial Port I/o Control

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Provided : 870 Watt

Operating System / Software :
Os Certified :
Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Suse Linux Enterprise Server 8, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, Red Hat Enterprise Linux 2.1, Red Hat Enterprise Linux 3

Software :
Drivers & Utilities, Compaq Smartstart, Compaq Management Agents, Compaq Insight Manager 7, Compaq Survey Utility, Compaq Rompaq

Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 10 - 70%
Sound Emission : 54 Dba

Dimensions & Weight :
Width : 19 In
Depth : 26.5 In
Height : 6.9 In
Weight : 65.92 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
