Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 407659-001
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 4-way
Height (rack Units) : 4u

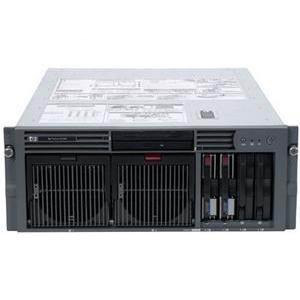

Product Name : Proliant Dl585 Gen1 - Rack Mountable Server ( Dual Core Model)

Processor & Chipset :
Cpu : Amd Opteron 885 / 2.6 Ghz
Number Of Cores : Dual-core
64-bit Computing : Yes
Cpu Qty : 2
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Cpu Socket : Socket 940

Cache Memory :
Installed Size : L2 Cache - 4 Mb
Cache Per Processor : 2 Mb

Ram :
Installed Size : 4 Gb / 32 Gb (max)
Technology : Ddr Sdram - Advanced Ecc
Effective Memory Speed : 400 Mhz
Rated Memory Speed : 400 Mhz
Memory Specification Compliance : Pc3200
Form Factor : Dimm 184-pin
Slots : 16 (total) / 12 (empty)
Upgrade Rule : 2 Modules At A Time

Hard Drive :
Type : No Hdd

Storage Controllers :
Type : 1 X Raid - Integrated - Pci-x
Controller Interface Type : Ultra160 Scsi
Storage Controller Name : Smart Array 5i Plus Controller
Channel Qty : 2
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 64 Mb

Storage Controller (2nd) :
Type : 1 X Ide - Integrated
Controller Interface Type : Ide/ata

Floppy Drive :
Type : 3.5 1.44 Mb Floppy

Optical Storage :
Type : Cd-rom - Ide
Read Speed : 24x

Monitor :
Monitor Type : None

Graphics Controller :
Type : Integrated
Interface Type : Pci
Video Memory : 8 Mb Sdram
Video Interfaces : Vga

Network & Communication :
Interface (bus) Type : Pci-x / 133 Mhz
Ethernet Controller : Hp Nc7782
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansion / Connectivity :
Expansion Bays Total (free) :
1 (total) / 0 (free) X External 5.25 X 1/6h (slim Line)
1 (total) / 0 (free) X External 3.5 X 1/6h
4 (total) / 4 (free) X Hot-swap 3.5 X 1/3h

Expansion Slots Total (free) :
4 (total) / 2 (free) X Cpu Dimm 184-pin
2 (total) / 2 (free) X Pci-x / 133 Mhz
6 (total) / 6 (free) X Pci-x / 100 Mhz
16 (total) / 12 (free) X Dimm 184-pin

Interfaces & Ports :
1 X Serial
1 X Ps/2 Mouse
1 X Ps/2 Keyboard
1 X Vga
2 X Usb
1 X HPE Ilo
2 X Lan (gigabit Ethernet)

Miscellaneous :
Features : Administrator Password, Power-on Password, Keyboard Password, Disk Configuration Lock, Diskette I/o Control, Serial Port I/o Control
Compliant Standards : Acpi 1.0a

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Provided : 870 Watt

Operating System / Software :
Os Certified :
Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Suse Linux Enterprise Server 8, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, Red Hat Enterprise Linux 2.1, Red Hat Enterprise Linux 3

Software :
Drivers & Utilities, Compaq Smartstart, Compaq Management Agents, Compaq Insight Manager 7, Compaq Survey Utility, Compaq Rompaq

Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 10 - 70%
Sound Emission : 54 Dba

Dimensions & Weight :
Width : 19 In
Depth : 26.5 In
Height : 6.9 In
Weight : 65.92 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
