Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 765822-001
Manufacturer Website Address : Www.hpe.com

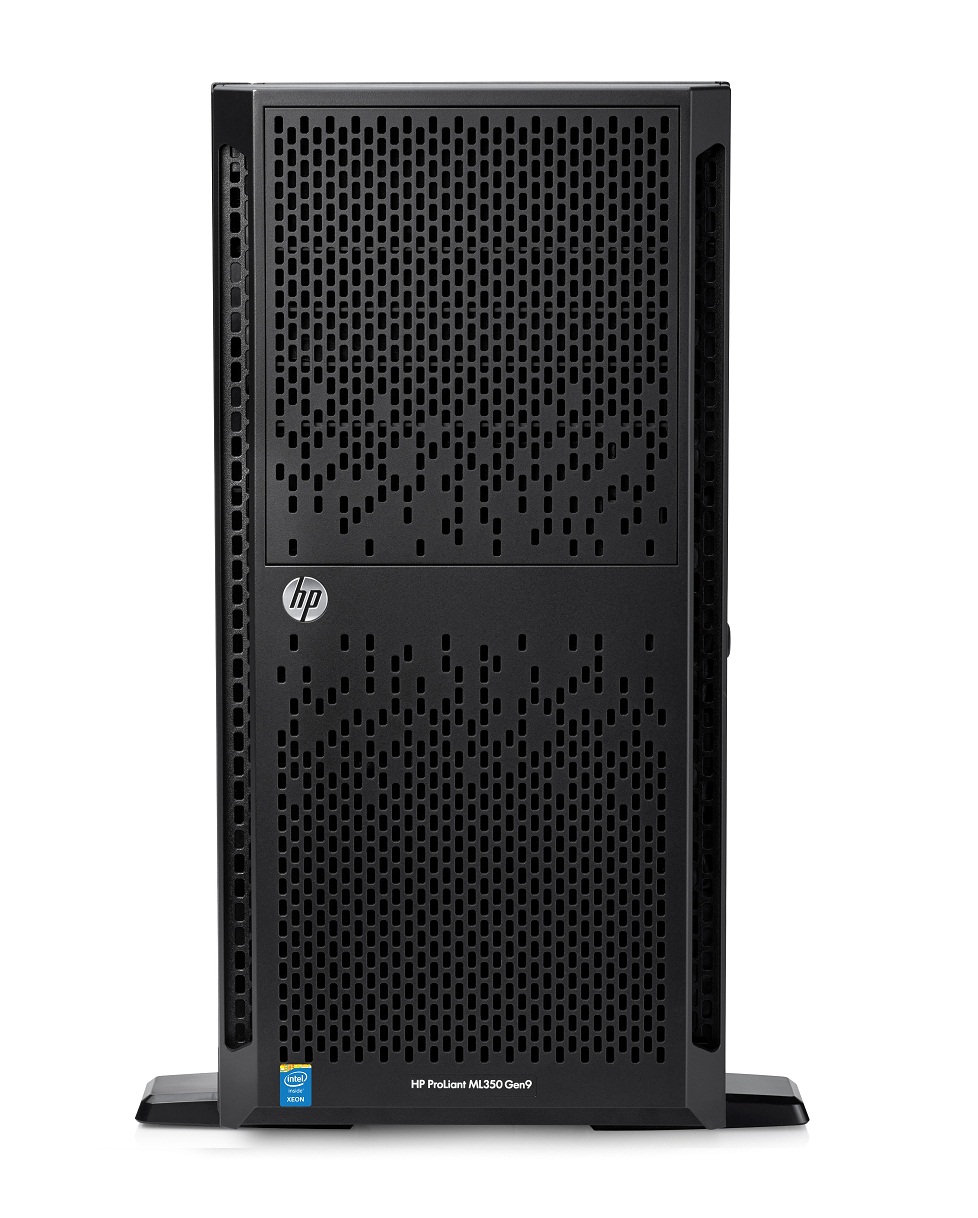

Product Name : Proliant Ml350 G9 - 5u Tower Server ( Performance Model)

Processor & Chipset :
Processor Type : Intel Xeon E5-2650v3/ 2.3ghz
Max Turbo Speed : 3 Ghz
Quickpath Interconnect : 9.60 Gt/s
Number Of Cores : 10-core
64-bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 2
Max Supported Qty : 2
Chipset Type : Intel C610 Series

Cache Memory :
Cache Memory Type : Smart Cache
Installed Size : 50 Mb
Cache Per Processor : 25 Mb

Ram :
Installed Size : 32 Gb / 384 Gb (max)
Technology : Ddr4 Sdram - Advanced Ecc
Effective Memory Speed : 2133 Mhz
Rated Memory Speed : 2133 Mhz
Memory Specification Compliance : Pc4-17000
Form Factor : Dimm 288-pin
Slots : 24 (total) / 22 (empty)
Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features : 2 X 16 Gb
Ram Supported : Pc4-17000 - 768 Gb Load-reduced Pc4-17000 - 384 Gb Registered

Storage:
Hard Drive : None
Optical Drive : None

Storage Controllers:
Storage Controller Name : Smart Array P440ar
Buffer Size : 2 Gb
Disk Drive : 12gb/s Sas / 6gb/s Sata
Sas Port Link Rate : 12gb/s Per Physical Link Supported
Pcie Link Rate : Pci Express 3.0 X8 (pcie3 X8)
Physical Drives : Up To 26 Drives
Logical Drives Supported : Up To 64 Logical Drives
Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm

Display & Graphics Controllers :
Graphics Processor : Matrox G200
Video Interfaces : Vga
Type : Integrated

Network & Communication:
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansion/ Connectivity :
Expansion Bays Total (free) :
1 (total) / 1 (free) X External 5.25 Slim Line
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :
24 (total) / 22 (free) X Dimm 288-pin
2 (total) / 0 (free) X Cpu
4 (total) / 4 (free) X Pcie 3.0 X8 - Full-length, Full-height ( X4 Mode )
3 (total) / 3 (free) X Pcie 3.0 X16 - Full-length, Full-height
1 (total) / 1 (free) X Pcie 2.0 X8 - Half-length, Full-height ( X4 Mode )
1 (total) / 1 (free) X Pcie 3.0 X16 - Full-length, Full-height ( X8 Mode )
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces & Ports :
1 X Vga
1 X Serial
4 X Lan (gigabit Ethernet)
1 X Hp Ilo
2 X Usb 3.0
4 X Usb 2.0 ( 2 Front, 2 Rear )

Miscellaneous :
Features :
Administrator Password
Power-on Password
Serial Port I/o Control
Setup Password
Uefi Bios

Compliant Standards :
Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Ashrae, Cns 13438

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 8.6 Inch
Depth : 30.3 Inch
Height : 18.3 Inch
Weight : 66.1 Lbs

Availability : In Stock
Condition : Refurbished
Our Warranty : 30 Days
