Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P21789-001
Manufacturer Website Address : WWW.HPE.COM

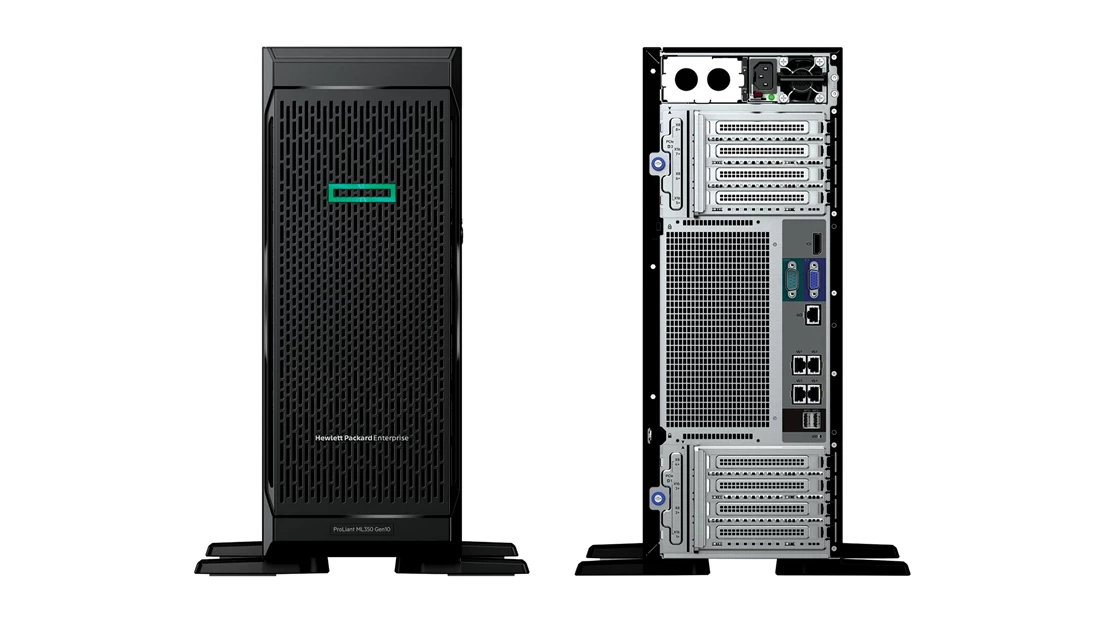

Product Name : Proliant Ml350 Gen10 - 4u Tower Server ( Performance Sff Model)

Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Silver 4214r / 2.4 Ghz
Max Turbo Speed : 3.5 Ghz
Number Of Cores : 12-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Turbo Boost Technology 2, Hyper-threading Technology, Intel Smart Cache
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 16.5 Mb
Cache Per Processor : 16.5 Mb

Memory :
Installed Size : 32 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2400 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Hp Smartmemory
Configuration Features : 1 X 32 Gb
Ram Supported : Pc4-23466 - 3 Tb Load-reduced Pc4-23466 - 1.5 Tb Registered

Storage Controllers :
Type : 1 X Raid - Pcie 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a Sr Gen10
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication :
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 369i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
2 (total) / 2 (free) X Pcie 3.0 X8 - Full-length, Full-height (x4 Mode)
2 (total) / 2 (free) X Pcie 3.0 X16 - Full-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces :
1 X Vga
1 X Serial
4 X Lan (gigabit Ethernet)
1 X Hp Ilo
5 X Usb 3.0 (2 Front, 2 Rear, 1 Internal)
1 X Usb 2.0 (1 Internal)
1 X Hp Ilo - Type A (1 In Front) (service Port)
1 X Displayport

Miscellaneous :
Included Accessories :
6 X Standard Fans

Theft/intrusion Protection :
Security Lock Slot (cable Lock Sold Separately)

Security Slot Type :
Kensington Security Slot

Compliant Standards :
Ashrae Class A4, Ashrae Class A3, Acpi 6.1, Energy-related Products (erp) Lot 9

Pricing Type : Bto

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%

Dimensions & Weight :
Width : 6.9 In
Depth : 25.5 In
Height : 18.2 In
Weight : 46.3 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
