Detail overview

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P11053-001
Manufacturer Website Address : Www.hpe.com

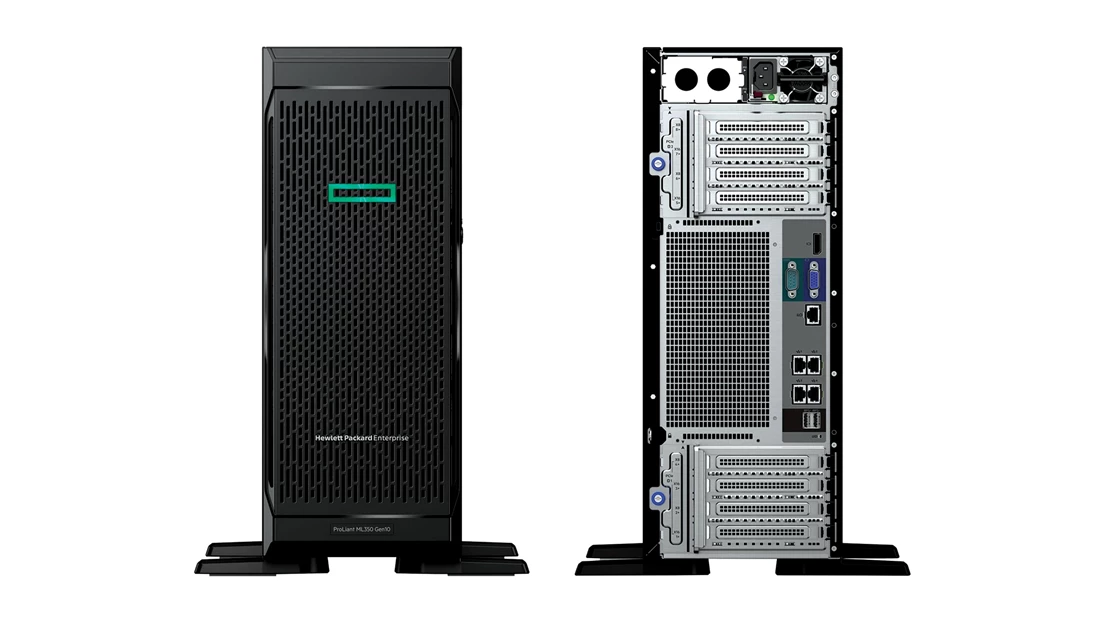

Product Name : Proliant Ml350 Gen10 - 4u Tower Server ( High Performance Model)

Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Gold 5218 / 2.3 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C622

Cache Memory :
Installed Size : L3 Cache - 22 Mb
Cache Per Processor : 22 Mb

Memory :
Installed Size : 32 Gb / 768 Gb (max)
Technology : Ddr4 Sdram - Advanced Ecc
Effective Memory Speed : 2400 Mhz
Rated Memory Speed : 2400 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Online Spare Memory, Hpe Smartmemory
Configuration Features : 1 X 32 Gb
Ram Supported : Pc4-21300 - 3 Tb Load-reduced ¦ Pc4-21300 - 768 Gb Registered

Storage:
Hard Drive : No Hdd
Optical Drive : None

Storage Controllers:
Type : 1 X Raid - Pcie 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : Hpe Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga, Displayport

Network & Communication:
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hpe 369i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out Standard
Features : Wake On Lan (wol), Acpi Support, Pxe Support

Expansion/ Connectivity :
Expansion Bays Total (free) :
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :
2 (total) / 2 (free) X Pcie 3.0 X8 - Full-length, Full-height (x4 Mode)
4 (total) / 4 (free) X Pcie 3.0 X16 - Full-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)
2 (total) / 2 (free) X Pcie 3.0 X8 - Full-length, Full-height

Interfaces & Ports :
1 X Vga
1 X Serial
4 X Lan (gigabit Ethernet)
1 X Hp Ilo
5 X Usb 3.0 (2 Front, 2 Rear, 1 Internal)
1 X Usb 2.0 (1 Internal)
1 X Hp Ilo - Type A (1 In Front)

Miscellaneous :
Included Accessories : 6 Fan Modules
Theft/intrusion Protection : Security Lock Slot (cable Lock Sold Separately)
Security Slot Type : Kensington Security Slot
Compliant Standards : Tls V1.2, Ashrae Class A4, Ashrae Class A3, Acpi 6.1

Power :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 6.9 In
Depth : 25.5 In
Height : 18.2 In
Weight : 46.3 Lbs

Availability : In Stock
Condition : Refurbished
Our Warranty : 30 Days
