Detail overview

General Information :
Manufacturer : Hpe
Manufacturer Part Number : 648376-001
Manufacturer Website Address : Www.hpe.com

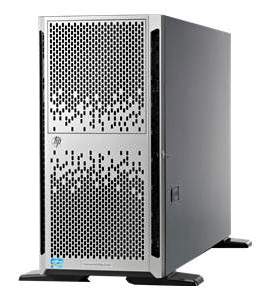

Product Name : Proliant Ml350e G8 2-way 5u Tower Server Base Model

Processor & Chipset :
Processor Type : Intel Xeon E5-2407/2.2ghz
Number Of Cores : Quad-core
64-bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600

Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 10 Mb
Cache Per Processor : 10 Mb

Memory :
Installed Size : 4 Gb
Maximum Size : 192 Gb
Technology : Ddr3 Sdram
Form Factor : Dimm 240-pin
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Features : Unbuffered, Hp Smartmemory
Configuration Features : 1 X 4 Gb

Storage & Storage Controller :
Hard Drive : No Hdd
Optical Drive Type : Dvd-rom - Serial Ata
Card Reader Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
Storage Controller Type : 1 X Raid - Plug-in Card - Pci Express 2.0
Controller Interface Type : Serial Ata-600
Storage Controller Name : Hp Dynamic Smart Array B120i With 512mb Fbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Channel Qty : 6
Buffer Size : 512 Mb

Display & Graphics Controllers :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200

Network & Communication :
Networking : Network Adapter - Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc361i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1s, Ieee 802.3az

Expansions & Connectivity :
Expansion Bays Total (free) :

  • 3 (total) / 2 (free) X External 5.25in
  • 4 (total) / 4 (free) X Internal - 3.5in Lff

    Expansion Slots Total (free) :
  • 12 (total) / 11 (free) X Memory - Lrdimm 240-pin
  • 2 (total) / 1 (free) X Cpu
  • 1 (total) / 1 (free) X Sd Card
  • 1 (total) / 1 (free) X Pcie 2.0 X4 - Half-length, Full-height ( X1 Mode )
  • 1 (total) / 1 (free) X Pcie 2.0 X8 - Full-length, Full-height ( X4 Mode )
  • 1 (total) / 1 (free) X Pcie 3.0 X16 - Full-length, Full-height ( X8 Mode )
  • 2 (total) / 2 (free) X Pcie 3.0 X16 - Full-length, Full-height ( X16 Mode )
  • 1 (total) / 1 (free) X Pcie 3.0 X8 - Full-length, Full-height ( X4 Mode)

    Interfaces & Ports :
  • 1 X Serial - Rs-232 - 9 Pin D-sub (db-9)
  • 1 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15)
  • 2 X Network - Ethernet 10base-t/100base-tx/1000base-tx - Rj-45
  • 1 X Management - Hp Ilo - Rj-45
  • 8 X Hi-speed Usb 2.0- 4 Pin Usb Type A ( 4 Front, 4 Rear )

    Power Device :
    Device Type : Power Supply - Hot-plug
    Power Redundancy : Optional
    Power Redundancy Scheme : 1+1 (with Optional Power Supply)
    Installed Qty : 1
    Max Supported Qty : 2
    Voltage Required : Ac 120/230 V ( 50/60 Hz )
    Power Provided : 460 Watt

    Dimensions & Weight :
    Width : 8.6 In
    Depth : 29.1 In
    Height : 18.2 In
    Weight : 57.2 Lbs

    Availability : In Stock.
    Condition : New Cto.
    Our Warranty : 30 Days.
