Detail overview

General Information :
manufacturer : HPE
manufacturer Part Number : 686714-S01
manufacturer Website Address : WWW.HPE.COM

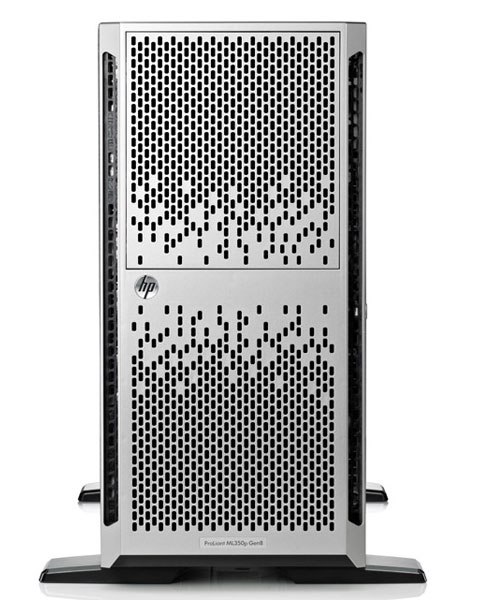

product Name : Proliant Ml350p G8 2-way 5u Tower Server S-buy

Processor & Chipset :
processor Type : Intel Xeon E5-2620 / 2.0ghz
number Of Cores : 6-core (hexa-core)
64-bit Computing : Yes
installed Qty : 1
max Supported Qty : 2
upgradability : Upgradable
chipset Type : Intel C600

Cache Memory :
cache Memory Type : L3 Cache
installed Size : 15 Mb
cache Per Processor : 15 Mb

Memory :
installed Size : 8 Gb
maximum Size : 786 Gb
technology : Ddr3 Sdram
form Factor : Dimm 240-pin
features :

Registered,

Single Rank,

Quad Channel Memory Architecture,

Hp Smartmemory
configuration Features : 2 X 4 Gb
ram Supported :

Pc3-12800 - 384 Gb - Registered

Pc3-10600 - 128 Gb - Unbuffered - Advanced Ecc

Pc3-10600 - 768 Gb - Load-reduced

Storage & Storage Controller :
hard Drive : None
optical Drive Type : Dvd-rom - Serial Ata
card Reader Type : Card Reader
supported Flash Memory Cards : Sd Memory Card
storage Controller Type : 1 X Raid - Plug-in Card - Pci Express 3.0 X8
controller Interface Type : Serial Ata-300 / Sas 2.0
storage Controller Name : Smart Array P420i
raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
buffer Size : 512 Mb

Display & Graphics Controllers :
graphics Controller Type : Integrated
graphics Processor : Matrox G200

Network & Communication :
networking : Network Adapter - Integrated
ethernet Ports : 4 X Gigabit Ethernet
ethernet Controller(s) : Hp 331i
data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Protocol : Ipmi 2.0, Smash Clp
remote Management Controller : Integrated Lights-out 4
features : Wake On Lan (wol), Pxe Support
compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansions & Connectivity :
expansion Bays Total (free) :

3 (total) / 2 (free) X Front Accessible - 5.25in X 1/2h

8 (total) / 8 (free) X Hot-swap - 2.5in Sff

expansion Slots Total (free) :

24 (total) / 22 (free) X Memory - Dimm 240-pin

2 (total) / 1 (free) X Processor

1 (total) / 1 (free) X Pci Express 3.0 X16 Full-length,full-height(x8 Mode)

4 (total) / 4 (free) X Pci Express 3.0 X8 Full-length,full-height(x4 Mode)

1 (total) / 1 (free) X Pci Express 2.0 X8 Half-length,full-height(x4 Mode)

3 (total) / 3 (free) X Pci Express 3.0 X16 - Full-length, Full-height

interfaces & Ports :

1 X Serial - Rs-232 - 9 Pin D-sub (db-9)

1 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15)

4 X Network - Ethernet 10base-t/100base-tx/1000base-tx - Rj-45

1 X Management - Hp Ilo - Rj-45

8 X Hi-speed Usb - 4 Pin Usb Type A ( 4 Front, 4 Rear )

Power Device :
device Type : Power Supply - Hot-plug
power Redundancy : Optional
power Redundancy Scheme : 1+1 (with Optional Power Supply)
installed Qty : 1
max Supported Qty : 2
voltage Required : Ac 120/230 V ( 50/60 Hz )
power Provided : 460 Watt

Dimensions & Weight :
width : 8.6 In
depth : 29.1 In
height : 18.2 In
weight : 70.3 Lbs

Availability : In Stock.
Condition : Refurbished.
Our Warranty : 30 Days.
