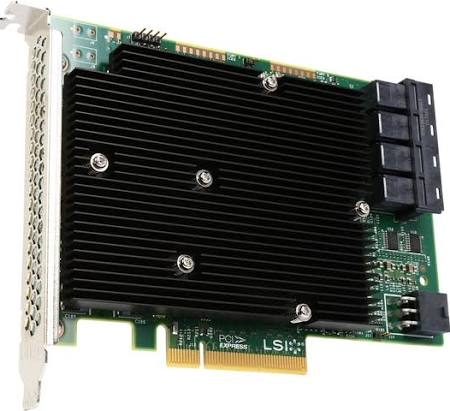

** Image may not exactly match product **
Broadcom  05-50011-00 9460-16I 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe RAID Controller F/s

Broadcom 05-50011-00 9460-16I 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe RAID Controller F/s

Part Number: 05-50011-00
Capacity: 16PORT

Quantity :
Upto 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

BROADCOM 05-50011-00 9460-16i 12gb/s Sas/sata/nvme Tri-mode Pcie Raid Controller.

Overview Data Center, Cloud And High-performance Computing Environments Not Only Require Large Amounts Of Storage Capacity, They Also Must Provide The Data Protection, Flexibility And Performance Today’s Applications And End Users Demand. The Megaraid 9460-16i Tri-mode Storage Adapter Is A 12gb/s Sas/sata/pcie (nvme) Controller Card That Addresses These Needs By Delivering Proven Performance And Raid Data Protection For A Range Of High-end Server Storage APPLICATIONS.

BROADCOM’S Tri-mode Serdes Technology Enables The Operation Of Nvme, Sas Or Sata Devices In A Single Drive Bay, Allowing For Endless Design Flexibility.

  • Connect Up To 255 Sas/sata Devices Or 24* Nvme Devices Per Controller
  • Fits Into Rack-mounted Servers With Low-profile Form Factor And Side-mounted Sas Connectors
  • Support Critical, High-bandwidth Applications With Pcie® 3.1 Connectivity
  • Balance Protection And Performance For Critical Applications With Raid Levels 0, 1, 5, 6, 10, 50, And 60
  • Add More Protection And Peace Of Mind With Cachevault® Flash Cache Protection.


    Physical Dimensions Low Profile 6.127” X 2.712”

    Cache Protection Cachevault Cvpm05

    Host Bus Type X8 Lane Pci Express® 3.1

    Cache Memory 4gb 2133 Mhz Ddr4 Sdram

    Raid Management Software Lsi Storage Authority (lsa), Storcli (command-
    line Interface), Hii (uefi Human Interface Infrastructure).

    Internal Ports 16

    Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant.

    Devices Supported Sas/sata: 255, Nvme: 4 X4, Up To 24 X2 Or X4*

    Internal Connectors 4 Mini-sas Hd X4 Sff-8643

    Operating Temperature 10° To 55° C

    Operating Voltage(v) +12v +/-8%, 3.3v +/-9%

    Os Microsoft Windows. Contact Oracle Support For Oracle Solaris Driver
    or Software Support. See WWW.BROADCOM.COM/SUPPORT/DOWNLOAD-SEARCH For Details On Versions.

    I/o Processor/sas Controller Sas3516 Dual-core Raid-on-chip (roc).

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 90 Days.
