** Image may not exactly match product **

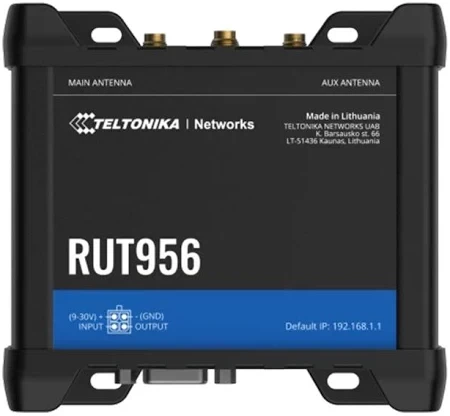

Teltonika RUT956A00A00 Model RUT956 Industrial Cellular Router
RUT956A00A00

Teltonika RUT956A00A00 Model RUT956 Industrial Cellular Router

Part Number: RUT956A00A00
BRAND: TELTONIKA | More NETWORKING from TELTONIKA
$275.00
Capacity: WIRELESS

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

General Information :

  • Product Description : TELTONIKA Rut956 - Wireless Router - Wwan - Wi-fi - 4g, 3g - Din Rail Mountable
  • Device Type: Wireless Router - Wireless Cellular Modem - 3-port Switch (integrated)
  • Enclosure Type: Din Rail Mountable
  • Cellular Protocol: Fdd Lte
  • Generation: 4g, 3g
  • Cellular Band: Lte B2, Lte B4, Lte B5, Lte B12, Lte B13, Lte B14, Lte B66, Lte B71, Umts B2, Umts B4, Umts B5
  • Wan Ports Qty: 1
  • Data Link Protocol: Ieee 802.11b, Ieee 802.11g, Ieee 802.11n, Ethernet, Fast Ethernet
  • Frequency Band: 2.4 Ghz
  • Capacity: simultaneous Connections: 100
    network / Transport Protocol: tcp/ip, Udp/ip, Ipv4, Ipv6, Ntp, Dns, Ftp, Arp, Pppoe, Dhcp, Telnet, Ddns, Openvpn, Pptp, L2tpv3, Wireguard
  • Routing Protocol: static Ip Routing, Bgp, Ospfv2, Rip-1, Rip-2, Nhrp, Vrrp
  • Platform: Clouds Of Things, Thingworx, Cumulocity, Azure Iot Hub
    remote Management Protocol: Icmp, Http, Https, Smtp, Ssh, Ssh-2, Mqtt, Modbus, Snmp 1, Snmp 2, Snmp 3, Tr-069
    voip Protocols: H.323, Sip
  • Features: ussd Support, White List, Black List, Multiple Pdn, Band Management, Auto Apn, Bridge Mode, Access Point Operational Mode, Auto Cipher Modes, Client Separation, Stealth Mode, Captive Portal, Radius Server, Auto-uplink (auto Mdi/mdi-x), Mqtt Support, Wol, Voip Passthrough Support, Ppp, Nat Support, Dhcp Relay, Qos, Sqm, Wmm Support, Load Balancing, Sshfs Support, Psk, Ipsec Nat-t, Ddos Attack Prevention, Port Scan Prevention, Vlan Support, Mobile Quota Control, Web Filtering, Mac Address Filtering, Gre Tunneling, Snmp Trap, Dmvpn, Sstp Client Instance Support, Fota, TELTONIKA Rms, Gps/glonass/galileo/beidou/qzss Support, Ntrip, Passive Poe Supported, Aluminum Housing, Wan Failover
  • Compliant Standards: Ieee 802.3, Ieee 802.3u, Upnp, Ieee 802.11e
  • Localization: United States

    Technical Information :
  • Device Type: Wireless Router - 3-port Switch (integrated)
  • Enclosure Type: Din Rail Mountable
  • Connectivity Technology: Wired, Wireless
  • Data Link Protocol: Ieee 802.11b, Ieee 802.11g, Ieee 802.11n, Ethernet, Fast Ethernet
  • Frequency Band: 2.4 Ghz
  • Capacity: simultaneous Connections: 100
    network / Transport Protocol: Tcp/ip, Udp/ip, Ipv4, Ipv6, Ntp, Dns, Ftp, Arp, Pppoe, Dhcp, Telnet, Ddns, Openvpn, Pptp, L2tpv3, Wireguard
  • Routing Protocol: static Ip Routing, Bgp, Ospfv2, Rip-1, Rip-2, Nhrp, Vrrp
    remote Management Protocol: Icmp, Http, Https, Smtp, Ssh, Ssh-2, Mqtt, Modbus, Snmp 1, Snmp 2, Snmp 3, Tr-069
  • Encryption Algorithm: wpa2-enterprise, Peap, Wpa2-psk, Wep, Wpa-eap, Wpa-psk, Aes-ccmp, Tkip, Ssl 3.0, Tls, Des, Rc2, Desx, Cast5, 128-bit Aes-cbc, 192-bit Aes-cbc, 256-bit Aes-cbc, Ikev1, Ikev2
    authentication Method: radio Service Set Id (ssid), X.509 Certificates, Radius
  • Features: ussd Support, White List, Black List, Multiple Pdn, Band Management, Auto Apn, Bridge Mode, Access Point Operational Mode, Auto Cipher Modes, Client Separation, Stealth Mode, Captive Portal, Radius Server, Auto-uplink (auto Mdi/mdi-x), Mqtt Support, Wol, Voip Passthrough Support, Ppp, Nat Support, Dhcp Relay, Qos, Sqm, Wmm Support, Load Balancing, Sshfs Support, Psk, Ipsec Nat-t, Ddos Attack Prevention, Port Scan Prevention, Vlan Support, Mobile Quota Control, Web Filtering, Mac Address Filtering, Gre Tunneling, Snmp Trap, Dmvpn, Sstp Client Instance Support, Fota, TELTONIKA Rms, Gps/glonass/galileo/beidou/qzss Support, Ntrip, Passive Poe Supported, Aluminum Housing, Wan Failover
  • Compliant Standards: Ieee 802.3, Ieee 802.3u, Upnp, Ieee 802.11e, Ip30, Red, Ukca, Cb, En 301 489-1 V2.2.3, Etsi En 301 489-17 V3.2.4, En 301 489-19 V2.2.0, En 301 489-52 V1.2.0, En 55032:2015+a1:2020, En 55035:2017+a11:2020, En 61000-3-3:2013+a1:2019, En Iec 61000-3-2:2019, En 61000-4-2:2009, En 61000-4-3:2020, En 61000-4-4:2012, En 61000-4-5:2014+a1:2017, En 61000-4-6:2009, En Iec 61000-4-11:2020, En 300 328 V2.2.2, En 301 908-1 V13.1.1, En 301 908-2 V13.1.1, En 301 908-13 V13.1.1, En 303 413 V1.1.1, En Iec 62311:2020, As/nzs 60950-1:2015, Iec 62368-1:2018, En Iec 62368-1:2020+a11:2020
  • Processor: 1 X Mediatek Mips 24kc 580 Mhz
  • Ram: 128 Mb Ddr2 Sdram
  • Flash Memory: 16 Mb
  • Built-in Devices: Gnss Receiver
  • Status Indicators: Connection Status, Signal Strength, Lan, Power

    Communications :
  • Type: Wireless Cellular Modem
  • Cellular Protocol: Fdd Lte
  • Generation: 4g, 3g
  • Cellular Band: Lte B2, Lte B4, Lte B5, Lte B12, Lte B13, Lte B14, Lte B66, Lte B71, Umts B2, Umts B4, Umts B5
  • Max Transfer Rate: 150 Mbps

    Ip Telephony :
  • Voip Protocols: H.323, Sip
    Internet Of Things (iot) :
  • Internet Of Things (iot) Compatible: Yes
  • Platform: clouds Of Things, Thingworx, Cumulocity, Azure Iot Hub

    Expansion / Connectivity :
  • Interfaces: Wan: 1 X 10base-t/100base-tx - Rj-45 ¦ Lan: 3 X 10base-t/100base-tx - Rj-45 ¦ Serial: 1 X Rs-232 - 9 Pin D-sub (db-9) ¦ Serial: 1 X Rs-485 ¦ Usb 2.0: 1 X 4 Pin Usb Type A ¦ Antenna: 2 X Sma - Lte ¦ Antenna: 2 X Rp-sma - Wi-fi ¦ Antenna: 1 X Sma - Gnss Antenna ¦ Input / Output
  • Expansion Slots: 2 (total) / 2 (free) X Mini-sim

    Antenna :
  • Antenna: External Detachable
  • Antenna Qty: 5

    Power :
  • Power Device: External Power Adapter - 9 Watt

    Miscellaneous :
  • Included Accessories: 2 X Lte Antennas, 2 X Wi-fi Antennas, Gnss Antenna, Rs-485 Connector, I/o Connector, Sim Card Adapter Kit
  • Cables Included: 1 X Network Cable - 5 Ft
  • Localization: United States

    Software / System Requirements :
  • Os Provided: Rutos

    Dimensions & Weight :
  • Width: 4.3 In
  • Depth: 3.9 In
  • Height: 2 In
  • Weight: 10.12 Oz

    Condition : Brand New.
    Availability : In Stock.
    Our Warranty : 90 Days.
