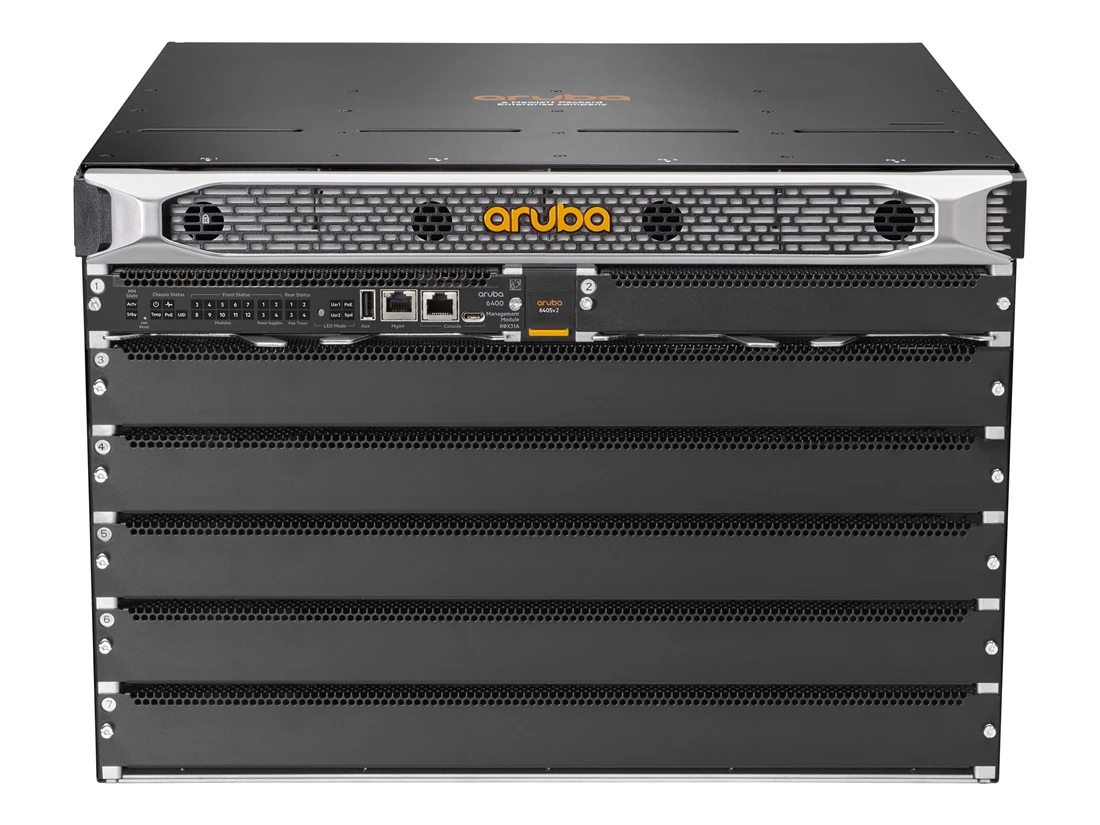

** Image may not exactly match product **

HPE R0X26-61101 Aruba 6405 V2 Switch Chassis

HPE R0X26-61101 Aruba 6405 V2 Switch Chassis

Part Number: R0X26-61101
BRAND: HPE | More NETWORKING from HPE
$7,500.00
Capacity: CHASSIS

Quantity :

5% Discount on Checkout
Extra 1% Discount on MobileApp

| Product Overview

HPE R0X26-61101 Aruba Cx 6405 V2 - Switch - L3 - Managed - Front To Back Airflow - Rack-mountable ( Power Supplies Not Included, Order Separately).

Key Features :

Device Type : Switch - L3 - Managed
enclosure Type : Front To Back Airflow Rack-mountable 7u
subtype : 10 Gigabit Ethernet
performance : Switching Capacity: 14 Tbps , Throughput: 5.7 Bpps
capacity : Switched Virtual Interfaces (svis): 2000 , Ipv4 Host Table Capacity: 32000 , Ipv6 Host Table Capacity: 32000 , Ipv4 Routes (unicast): 64000 , Ipv6 Routes (unicast): 64000 , Ipv4 Routes (multicast): 8000 , Ipv6 Routes (multicast): 8000 , Igmp Groups: 8000 , Mld Groups: 4000 , Ipv4 Acl Entries (ingress): 5000 , Ipv6 Acl Entries (ingress): 1250 , Mac Acl Entries (ingress): 5000 , Ipv4 Acl Entries (egress): 2000 , Ipv6 Acl Entries (egress): 500 , Mac Acl Entries (egress): 2000
mac Address Table Size : 32768 Entries
jumbo Frame Support : 9198 Bytes
routing Protocol : Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Policy-based Routing (pbr), Mldv2, Mld, Bidirectional Forwarding Detection (bfd)
remote Management Protocol : Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Ssh-2, Cli, Xrmon, Sftp
authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
features : Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, High Availability, Firmware Upgradable, Sflow, Pvst, Mstp Support, Acl Support, Qos, Jumbo Frames Support, Mld Snooping, Udld, Rapid Pvst+, Dwrr, Lldp Support, Mib, Dhcp Protection, Dual Firmware Images, Mvrp, Packet Storm Protection, Cos, Sp, Broadcast Storm Protection, Tos, Bpdu, Vxlan, Multicast Storm Protection, Ntp, Ra Guard, Pim, Vlan Tagging, Rstp, Ipv4 And Ipv6 Dual Stack, Ip Multicast, Bsr Mechanism, Vsx, Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Nlb
compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1ax, Ieee 802.3bt
processor : 1: 1.8 Ghz
ram : 16 Gb Ddr4 Sdram
flash Memory : 32 Gb
status Indicators : Power, Active, Standby, Status, Fan

Expansion / Connectivity :
Interfaces :

1 X Usb-c Console

1 X Console Rj-45

1 X Usb Type A

1 X Management Rj-45

Installed Modules Qty (max) : 1 (installed) / 7 (max)

Power :

Power Device : Internal Power Supply ( Not Installed)

Installed Qty : 0 (installed) / 4 (max)

Power Redundancy : Optional

Voltage Required : Ac 120/230 V (50/60 Hz)

80 Plus Certification : 80 Plus Platinum

Condition : New Open Box
Availability : In Stock
Our Warranty : 90 Days
Customer Pays Shipping
