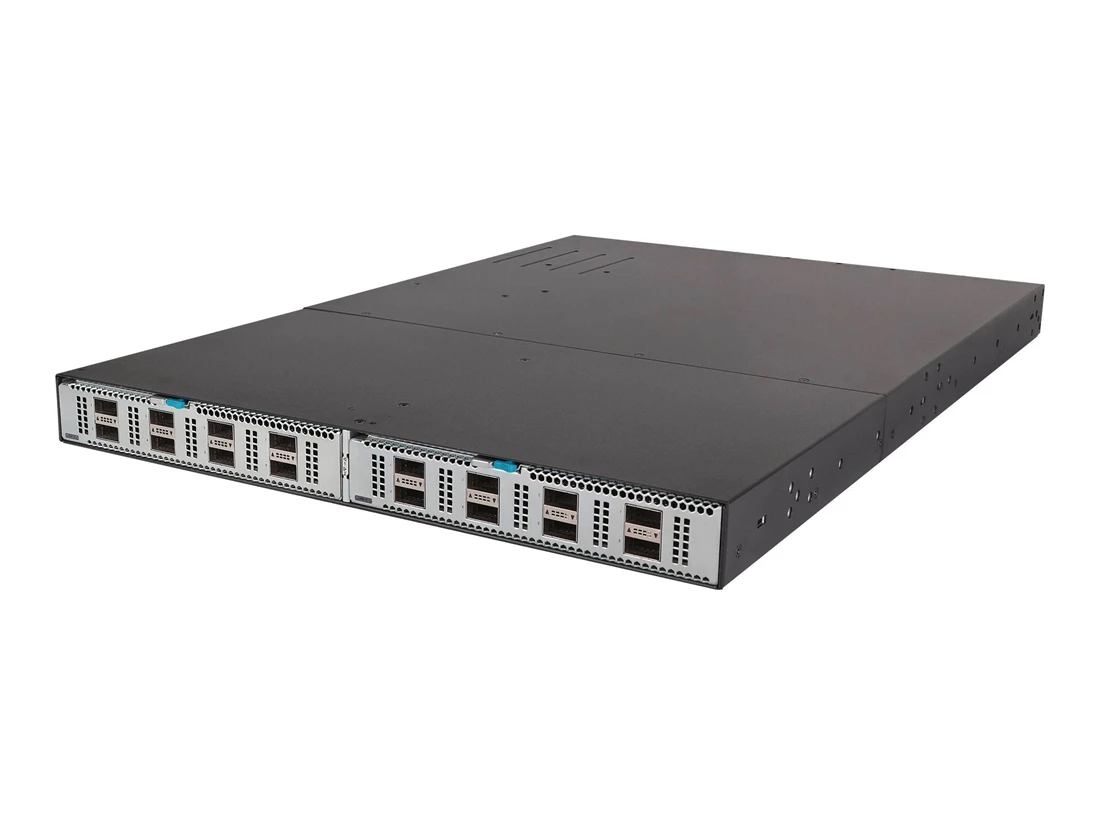

HPE JQ075A FlexFabric 5945 2-Slot Switch

Part Number: JQ075A
BRAND: HPE | More NETWORKING from HPE
$7,020.00
Capacity: MISCELLANEOUS

Quantity :
| Product Overview

HPE JQ075A Flexfabric 5945 2-slot - Switch - 2 Ports - Managed - Rack-mountable :

Key Features :

  • Device Type : Switch - 2 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : 100 Gigabit Ethernet
  • Ports : 2 X 100 Gigabit Qsfp28
  • Performance : Latency (64-byte Packets): 1 Μs ¶ Throughput: 2024 Mpps ¶ Routing/switching Capacity: 3.6 Tbps
  • Capacity : Ipv4 Routing Table Entries: 324000 ¶ Ipv6 Routing Table Entries: 162000 ¶ Mac Address Entries: 288000
  • Mac Address Table Size : 288k Entries
  • Jumbo Frame Support : 9416 Bytes
  • Max Units In A Stack : 9
  • Routing Protocol : Ospf, Bgp-4, Is-is, Rip-1, Rip-2, Bgp, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Static Ipv6 Routing, Ecmp, Ripng, Ipv6 Is-is, Mpls, Bidirectional Forwarding Detection (bfd), Bgp+
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon, Telnet, Snmp 3, Snmp 2c, Tftp, Ssh, Cli
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Flow Control, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Packet Filtering, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Ipv6 Support, Sntp Support, Weighted Fair Queuing (wfq), Sflow, Pim Snooping, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Tunneling, Data Center Bridging Exchange (dcbx) Support, Dhcp Snooping, Quality Of Service (qos), Committed Access Rate (car), Jumbo Frames Support, Device Link Detection Protocol (dldp) Support, Equal-cost Multipath (ecmp), Ipv4 Support, Lldp Support, Dhcp Relay, Link Aggregation Control Protocol (lacp), Port Security, Data Center Bridging (dcb), Management Information Base (mib), Ntp Time Synchronization, Fcoe Forwarding, Ingress Layer 2 Mac Access Control Lists (acls), Class Of Service (cos), Strict Priority (sp), Intelligent Resilient Framework Technology (irf), Fcoe Support, In-service Software Upgrade (issuu), 32mb Packet Buffer, Udp Shaping, Network Timing Protocol (ntp), Weighted Deficit Round Robin (wdrr), Top-of-rack (tor), 2 Fan Tray Slots
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.1ax, Ieee 802.1qaz, Ieeev 802.3ag
  • Ram : 8 Gb Sdram
  • Flash Memory : 1 Gb

    Expansion / Connectivity :
  • Interfaces : 2 X 100gbit Lan Qsfp28 ¶ 1 X Serial (console) Rj-45 ¶ 2 X Management (lan) Rj-45 ¶ 1 X Usb 2.0 ¶ 1 X Mini-usb 2.0
  • Expansion Slots : 2 (total) / 2 (free) X Expansion Slot
  • Installed Modules Qty (max) : 0 (installed) / 2 (max)

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Max Supported Qty : 2
  • Power Redundancy : Yes
  • Power Provided : 650 Watt
  • Voltage Required : Ac 120/230 V (50/60 Hz)

    Condition : HPE Renew Factory Sealed
    Availability : In Stock
    Our Warranty : 30 Days
