** Image may not exactly match product **

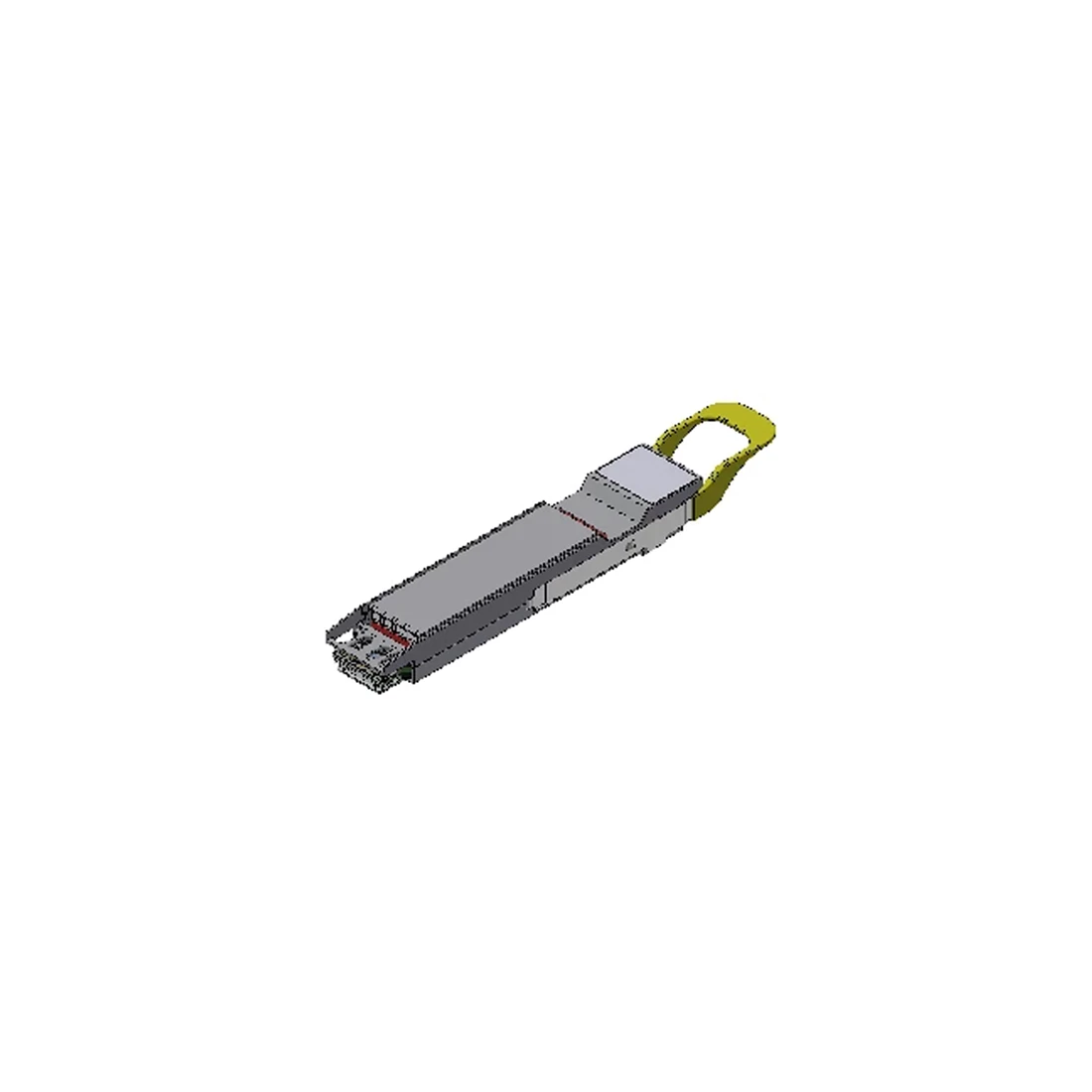

NVIDIA 980-9IAH1-00XM00 Twin Port Transceiver 1600Gbps OSFP 2xMPO 1310nm SMF up to 500m IHS
980-9IAH1-00XM00

NVIDIA 980-9IAH1-00XM00 Twin Port Transceiver 1600Gbps OSFP 2xMPO 1310nm SMF up to 500m IHS

Part Number: 980-9IAH1-00XM00
BRAND: NVIDIA | More NETWORKING from NVIDIA
$2,650.00
Capacity: 1600GB

Quantity :
5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

NVIDIA 980-9IAH1-00XM00 Twin Port Transceiver 1600gbps Osfp 2xmpo 1310nm Smf Up To 500m Ihs.

Overview

The NVIDIA Mms4a00 Is A 1600gb/s 2xdr4, Single Mode Optical Transceiver Supporting The Xdr 800gb/s Infiniband Protocol. The Line Rate Is 200gb/s Using Pulse Amplitude Modulation At 4-channels Denoted As 200g-pam4 Enabling Two Data Bits To Transfer Per Clock Pulse.

The Electrical Configuration Is 8-channels Of 200g-pam4. Optical Configuration Is Based On Two Datacenter Reach, 4-channel (2xdr4), 800gb/s Optical Connectors.

Optical Connectors Are Multiple Push-on 12-fiber, Angled Polished Connector Or Mpo-12/apc. Two Mpo-12/apc Optical Connectors Are Used Per Transceiver.

The 2x800g Transceiver Engine Enables The Infiniband Quantum-x800 Qm3400, 72-cage Switch To Support 144-ports Of 800gb/s.

Based On 9-um, Single Mode Fibers, The Main Application Is Linking Two Switches Together Up To 500-meters, Or To Two 800g Links To Two Switches Or Network Adapters For Storage And Compute Servers. The 500-meter Length Assumes Two Optical Patch Panels Or Four Optical Connectors In The LINK.

NVIDIAS Transceivers Guarantee Optimal Operation In NVIDIA End-to-end Infiniband Systems, And Rigorous Production Testing Ensures The Lowest Bit Error Rates, Low-latency, And Best Out-of-the-box Installation Experience, Performance, And Durability.

Key Features

  • 1600gb/s Single Mode Transceiver
  • 8-channels Of 200g-pam4 Electrical Modulation
  • Two Ports Of 4-channel 200g-pam4 Optical Modulation
  • Two Mpo-12/apc Optical Connectors
  • 1310nm Laser
  • Maximum Reach: 500-meters
  • 33.5w Max Power
  • Single 3v Power Supply
  • Class 1 Laser Safety
  • Hot Pluggable, Rohs Compliant
  • Supports Cmis 4.0
  • Case Temperature Range Of 20°c To +70°c
  • Secure Firmware Boot And Update Features

    Applications
  • Used In Quantum-3 Air-cooled And Liquid-cooled Switch

    Condition: Brand New.
    Availability: In Stock.
    Our Warranty: 90 Days.
