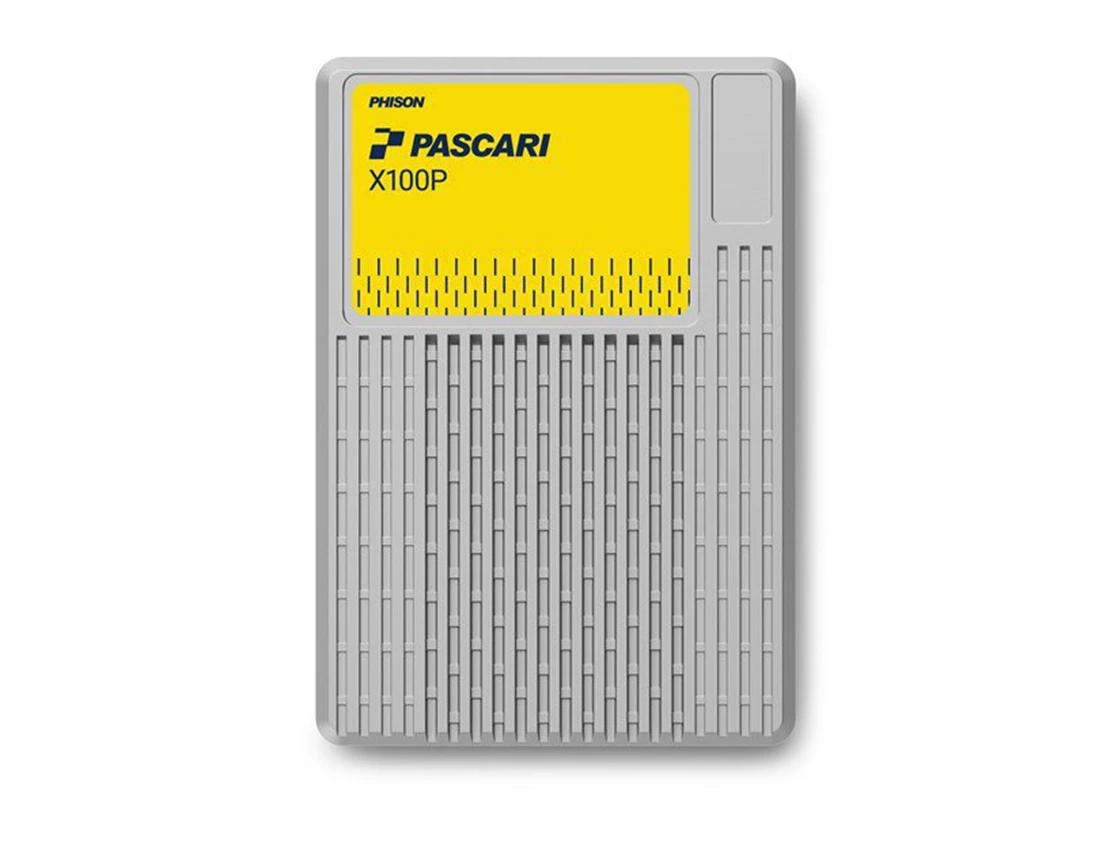

Phison XP106H0015T3P0116T300 Pascari X100P 15360GB U.2 PCIe Gen4x4 Non Opal Security Ssd Brand New
XP106H0015T3P0116T300

Phison XP106H0015T3P0116T300 Pascari X100P 15360GB U.2 PCIe Gen4x4 Non Opal Security Ssd Brand New

Part Number: XP106H0015T3P0116T300
BRAND: PHISON | More SSD from PHISON
$9,250.00
Capacity: 15.36TB

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

PHISON XP106H0015T3P0116T300 Pascari X100p 15360gb U.2 Single Port Pcie Gen4x4 Non-opal Security Solid State Drive.

Main Features
Capacity : 15360gb
Form Factor : U.2
Interface : Single Port
Security : Non-opal

Pcie Interface
Pcie Gen4x4
Single Port X4 Lanes
Pcie Aer (advanced Error Reporting)

Performance
Maximum Sequential Read / Write : 7000mb/s / 6800mb/s
Maximum Random Read / Write : 1600kiops / 180kiops
Sustained Random Read / Write Latency(micro Second) : 100/15(qd=1, Workers=1)| 110/300(qd=32, Workers=1)| 450/3800(qd=64, Workers=8)
Iops Consistency : 95%
Qos (quality Of Service, 99%)read / Write: 100/12(qd=1, Workers=1)| 120/200(qd=32 Workers=1)| 600/3000(qd=64, Workers=8)

Power Consumption
Random Read/write (typ) : 16.2/19.6 W
Sequential Read/write (typ): 12.3/20.1 W
Inrush Current : 1.5a
Idle Power (typ) : 7.32 W
Dwpd : 1dwpd
Tbw : 28032 Tb
Lba F : 512 / 512+ 8 / 4k / 4k + 8 / 4k + 64 Bytes
Mtbf : 2,500,000 Hours
Uber(uncorrectable Bit Error Rates) : < 1 Sector Per 10^18 Bits Read
Advanced Flash Management
Ecc
Static And Dynamic Wear Leveling
Bad Block Management
Deallocate (trim) Command
Smart
Over-provision
Firmware Upgrade

Temperature Range
Operation : (0 - 70) Degrees Centigrade With Specified Airflow
Storage : (-40 - 85) Degrees Centigrade
Rohs Compliant

Enterprise Features Support List
Namespace
Single Port
Reservation
Metadata Protection Thermal Throttling
Power Loss Protection

Hardware Aes-xts 256-bit Encryption
Support Smbus
Support Nvme-mi (management Interface)
Data Retention : 3 Months
Physical Dimension : U.2 100(l)x70(w)x15(h) Mm

Compliance
Pcie Express Base 4.0
Nvme 1.4
Nvme Management Interface Rev 1.1

Condition : Brand New
Availability : In Stock
Mfg Warranty : None
Our Warranty : 90 Days
