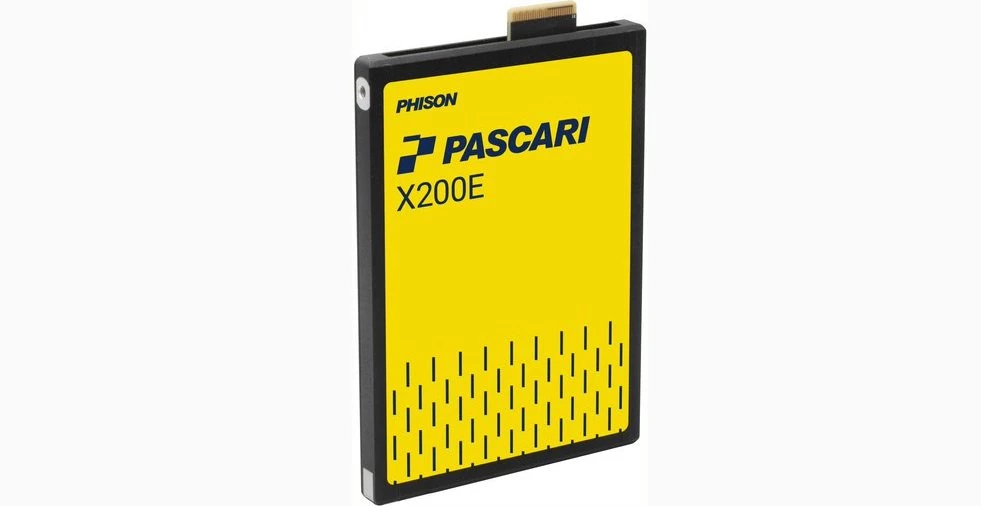

Phison XP208H036T40E228T1910 Pascari X200E 6400GB U.2 PCIe Gen5x4 Opal Security Ssd
BRAND: PHISON | More SSD from PHISON
$3,525.00
Capacity: 6.4TB
Quantity :
Product Overview
PHISON XP208H036T40E228T1910 Pascari X200e 6400gb U.2 15mm Single Port Pcie Gen5x4 Opal Security Solid State Drive.
Main Features
Capacities : 6400 Gb
Form Factor : U.2 15mm
Interface : Single Port
Security : Opal
Pcie Interface
Pcie Gen5x4
Single Port X4 Lanes
Pcie Aer (advanced Error Reporting)
Performance
Maximum Sequential 128kb Read/write (qd=32, Workers=1)(mb/s) : 14,000/8,500
Maximum 4k Sustained Random Read/write (qd=64, Workers=8)(iops) : 3,000,000/850,000
Latency 4k Sustained Random Read/write (micro Second) : 60/10(qd=1, Workers=1)| 85/100(qd=4, Workers=8)| 190/1100(qd=64, Workers=8)
Iops Consistency 4kb Sustained Random Read/write : 95%/95%
4kb Sustained Random Read/write Quality Of Service (qos=99%)(4kb) : 80/12(qd=1, Workers=1)| 120/100(qd=4, Workers=8)| 450/1100(qd=64, Workers=8)
Dwpd: 3dwpd
Tbw : 35040 Tb
Lbaf : 512 / 512+ 8 / 4k / 4k + 8 / 4k + 64 Bytes
Mtbf : 2.5 Million Hours
Uber(uncorrectable Bit Error Rates) : 3d Nand < 1 Sector Per 10^18 Bits Read
Advanced Flash Management
Ecc
Static And Dynamic Wear Leveling
Bad Block Management
Deallocate (trim) Command
Smart
Over-provision
Firmware Upgrade
Temperature Range
Operation : 0c - 70c With Specified Airflow
Storage : -40c - 85c
Rohs Compliant
Enterprise Features Support List
Namespace
Single Port
Reservation
Metadata Protection Thermal Throttling
Power Loss Protection
Hardware Aes-xts 256-bit Encryption
Support Smbus
Support Nvme-mi (management Interface)
Data Retention : 3 Months
Physical Dimension: U.2 15mm 100(l)x70(w)x15(h) Mm
Compliance
Pcie Express Base 5.0
Nvme Express 2.0
Nvme Express Management Interface Rev 1.2
Pcie Express Sff-8639 Module Specification Revision 4.0, Version1.0
Flash Configuration : 512gb X 16
Flash Type : 128ce, 512gb Odp
Weight (g) : <250
Tbw (terabytes Written) And Dwpd (drive Write Per Day)
Flash Structure : 512gb X 16
Flash Type : 3d Etlc
Tbw : 35040
Dwpd : 3
Supply Voltage
12v : +/- 10%
12v Noise Level : 240mvp-p, 0-20mhz
12v Min Off Time : 500ms
3.3v Aux : +/- 15%
Inrush Current : 12v 2.5a
